CCA Conductor Lan Cable Utp Cat5e 4pr 24awg Network Cable 305m

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: ISO,TLC
Model Number: UTP CAT5 CCA
Minimum Order Quantity: 30500 Meters
Price: Can Be Negotiated
Packaging Details: Carton+Fumigated Wooden Tray
Delivery Time: 5-8Days
Payment Terms: L/C, T/T
Supply Ability: 3050000M per month

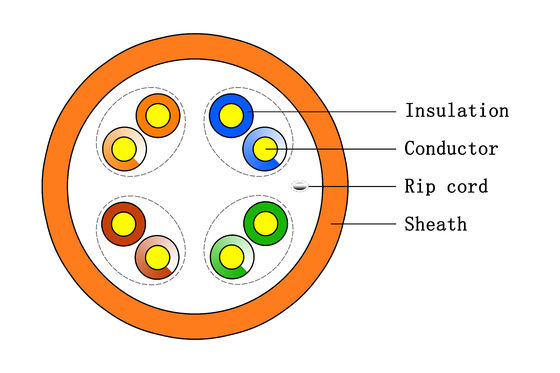

Product Name: UTP CAT5 CCA LAN CABLE Application: Networking Communication
Core: 4 Pairs Conductor: CCA
Insulation: HDPE Sheath Material: LSZH Or PVC
Length: 305M Package: Carton+pallet
High Light:

CCA Conductor lan cable utp cat5e

,

Low attenuation lan cable utp cat5e

,

cat 5 cable 305m

UTP CAT5 CCA LAN CABLE



Description



Utp cat5 cca lan cablecomes with 4 Unshielded Twisted Pairs (UTP), if your installation calls for a type of cable that can withstand electrical interference and prevent signal loss.


Features



Low DC resistance, Low attenuation

Flexible cable,easy to cabling



Applications


network cabling


Performance



Electrical Characteristics
Frequency (MHz) ATT(≤dB/100m) NEXT(≥dB) ELFEXT(≥dB)
1 2.04 62.3 60.0
4 4.1 55.3 49.0
10 6.5 47.3 41.0
20 9.3 42.8 35.0
31.25 11.7 39.9 31.1
62.5 17.0 35.2 25.0
100 22.0 32.3 21.0
Characteristic Impedance 100±15Ω D-C Resistance Unbalance ≤2.5%
Delay Skew ≤40ns/100m D-C Resistance ≤11.5Ω/100m
Phase Delay ≤538ns/100m Operating Temperature -20℃~+60℃





Company profile



SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
