RG6 Copper Cable With Messenger CCTV Coaxial Atenna Cable CATV Satellite Systems

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: ISO, TLC,SGS
Model Number: RG6 Coaxial cable(with messenger)
Minimum Order Quantity: 10,000 Meters
Price: Can be negotiable
Packaging Details: Fumigated Wooden Tray
Delivery Time: 5-8Days
Payment Terms: T/T, L/C,
Supply Ability: 20000000m per month
Product Name: RG6 Coaxial Cable(with Messenger) Application: Local Communication Cable, Coaxial Cable, CCTV CATV Satellite
Conductor: Copper Insulation Material: Foam PE
Shield: Aluminum Foil+Aluminum Magnesium Alloy Wire Jacket: PVC
Color: White Or Gray Transport Package: Wooden Drum
High Light:

5MHZ rg6 copper cable

,

rg6 copper cable

,

rg 6 coaxial cable for CATV satellite

RG6 Copper 75ohm CCTV Coaxial Cable(with messenger wire)



Desciption

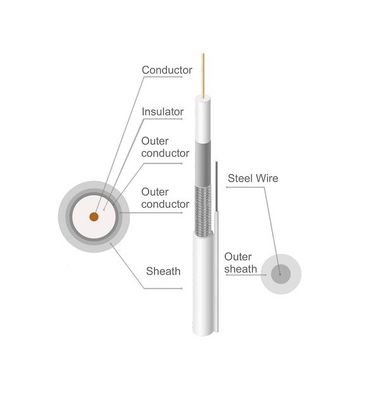

High-physics foamed coaxial cable is a semi-air insulated cable. The inner conductor is made of high-quality oxygen-free copper wire .The mutually closed air holes, the adhesion between the insulation and the inner conductor is firm; the outer conductor is braided with aluminum foil longitudinally wrapped with aluminum-magnesium alloy wire or tinned copper wire; with a PVC or PE outer sheath.

We can offer same as per customer's requirement for option! Mainly we can offer Wooden Drum ,Plastic Drum,Pallet for choice.Any Other Packing Requirement can be acceptable.



Peiformance



Electrical Characteristics Nom.Impedance 75±3Ω
DC-resistance(20ºC) ≤9,578μΩ.cm
conductor resistance 98 Ω/km
propagation speed >82%
capacitance ≤53 pF / m
Return loss 5MHz - 300 MHz: ≥24 dB
300 MHz - 1200 MHz: ≥20 dB
performance Shielding effect 5MHZ≥95dB
300MHZ≥95dB
550MHZ≥100dB
1000MHZ≥1055dB
Attenuation 5MHZ<1.9dB/100m
55MHZ<5.25dB/100m
211MHZ<10dB/100m
250MHZ<10.28dB/100m
270MHZ<11.04dB/100m
300MHZ<11.64dB/100m
330MHZ<12.26dB/100m
350MHZ<12.63dB/100m
400MHZ<13.61dB/100m
450MHZ<14.43dB/100m
500MHZ<15.29dB/100m
550MHZ<16.08dB/100m
600MHZ<16.73dB/100m
750MHZ<18.54dB/100m
870MHZ<20.04dB/100m
1000MHZ<21.49dB/100m
1200MHZ<23.50dB/100m
1450MHZ<25.79dB/100m
1750MHZ<28.61dB/100m
2000MHZ<30.58dB/100m
3000MHZ<37.73dB/100m



Conpany file

RG6 Copper Cable With Messenger CCTV Coaxial Atenna Cable CATV Satellite Systems 0

RG6 Copper Cable With Messenger CCTV Coaxial Atenna Cable CATV Satellite Systems 1RG6 Copper Cable With Messenger CCTV Coaxial Atenna Cable CATV Satellite Systems 2

RG6 Copper Cable With Messenger CCTV Coaxial Atenna Cable CATV Satellite Systems 3
RG6 Copper Cable With Messenger CCTV Coaxial Atenna Cable CATV Satellite Systems 4
