Application: | CommunicationTelecommunication,power Supply And Radio | Type: | Single-mode Fiber |
---|---|---|---|
Connection Structure: | Two Parallel Steel Wires | Core: | 2-12cores |
Fiber Model: | G652D Or G657A | Loose Tube Material: | PBT |
Strength Member: | Steel Wire | Sheath Material: | HDPE |
Color: | Black | Length: | 2-4km/Drum Or Customized |

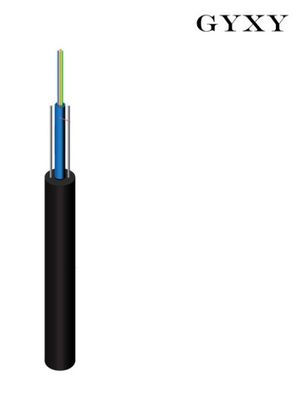

GYXY Outdoor Fiber Optic Cable Single Mode 2 4 8 12 Cores
DESCRIPTION
GYXY outdoor fiber optic cable is to insert optical fiber into a loose tube made of high modulus material, filled with water-blocking compounds. Outside the loose tube plus water-blocking material to ensure longitudinal water blocking of cable. Two parallel steel wires are placed on both sides to squeeze the polyethylene sheath into the cable.
FEATURES
Gel-filled loose tube for better protection of fiber
Two parallel wires to ensure the cable's tensile strength
Small diameter, light weight, easy to lay
APPLICATIONS
Duct and Aerial
Telecommunication,power supply and radio&television departments
Self and Non-Self Supporting
PERFORMANCE
Type | Max.Attenuation | Tensile strength | Crush resistance | Min.Bending radius | |||
1310nm | 1550nm | Short term | Long term | Short term | Long term | ||
GYXY | 0.36dB/km | 0.22dB/km | 1500N | 600N | 1000N | 300N | 20D |
Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.
1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate
4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
