| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | JIANGHONG or OEM |
| Certification: | ISO,TLC |
| Model Number: | GJYXFCH-4 |
| Minimum Order Quantity: | 20,000 Meters |
| Price: | Can Be Negotiated |

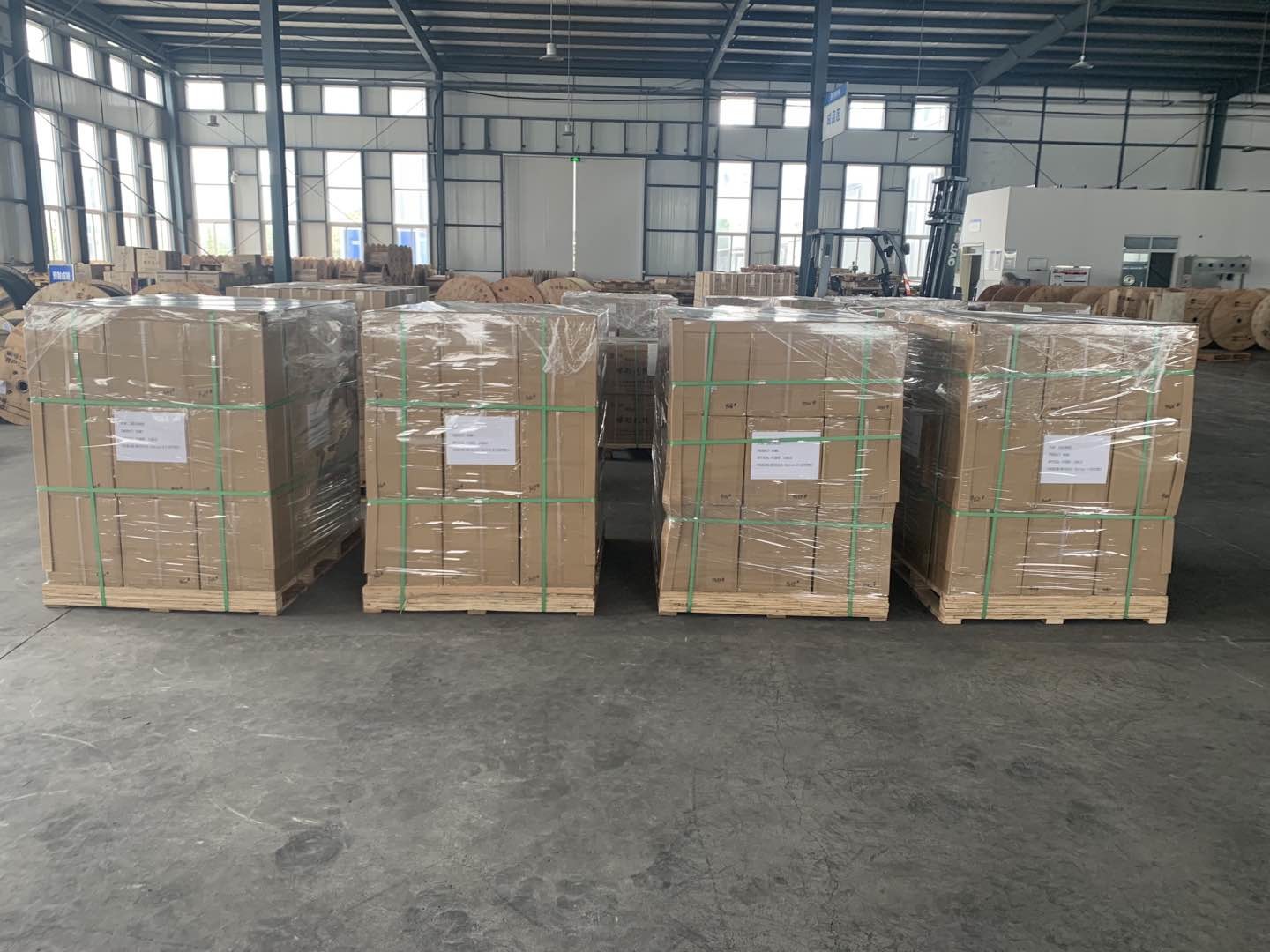

| Packaging Details: | Carton+Fumigated Wooden Tray |
| Delivery Time: | 5-8Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000KM per month |
| Product Name: | FTTH Drop Cable | Core: | 4cores |
|---|---|---|---|
| Application: | Communication And Building Wiring | Fiber Model: | G657a2 G657a1 G652d |
| Strength Member: | FRP | Sheath Material: | LSZH |
| Allowed Lateral Pressure: | >1000(N/100mm) | Allowed Tensile Strength: | 1000N<10000N |
| Length: | 2km/Drum Or Customized | Packing: | Carton & Pallet |
| High Light: | 1000N GJYXFCH 4 outdoor drop fiber cable,1000N G652d outdoor drop fiber cable,4 core outdoor cable 1000N |
||

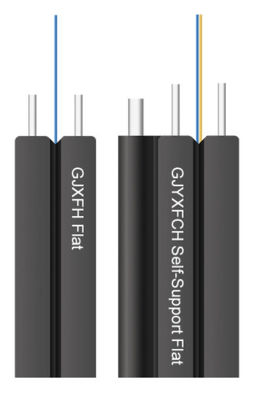

GJYXFCH 1core 2core 4core Indoor Outdoor FTTH Drop Cable Single Mode FRP Member
Description
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.
Features
Applications
Performance
|
Type |
Max.Attenuation |
Tensile strength |
Crush resistance |
Min.Bending radius(Dynamic) |
|||
|
1310nm |
1550nm |
Short term |
Long term |
Short term |
Long term |
||
|
GJYXFCH-4 |
0.36dB/km |
0.25dB/km |
80N |
40N |
1000N |
500N |
40.0×Cable-φ |
|
NO. |
Items |
Unit |
Specification | |
|
G657A1 |
||||
|
1 |
Mode Field Diameter |
1310nm |
µm |
(8.4-9.2)±0.4 |
|
2 |
Cladding Diameter |
µm |
125.0±0.7 | |
|
3 |
Cladding Non-Circularity |
% |
≤1.0 | |
|
4 |
Core-Cladding Concentricity Error |
µm |
≤0.5 | |
|
5 |
Coating Diameter |
µm |
245±10 | |
|
6 |
Coating Non-Circularity |
% |
≤1.0 | |
|
7 |
Cladding-coating Concentricity Error |
µm |
<12.5 |
|
|
8 |
Cable Cutoff Wavelength |
nm |
λ cc ≤1260 | |
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
0.4 |
|
1550nm |
dB/km |
0.3 |
||
|
10 |
Macro-Bending Loss |
1 turn×10mm radius @1550nm |
dB |
≤0.75 |
|
1 turn×10mm radius @1625nm |
dB |
≤1.5 | ||
Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.
1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate
4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
