| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | JIANGHONG or OEM |
| Certification: | ISO,TLC |
| Model Number: | GJYXCH-4 |
| Minimum Order Quantity: | 20,000 Meters |
| Price: | Can Be Negotiated |
| Packaging Details: | Carton+Fumigated Wooden Tray |
| Delivery Time: | 5-8Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000KM per month |
| Product Name: | Outdoor FTTH Drop Cable | Core: | 4cores |
|---|---|---|---|
| Application: | Communication Wiring | Fiber Model: | G657A2 |
| Strength Member: | Two Steel Wires | Sheath Material: | LSZH PVC |
| Allowed Lateral Pressure: | >1000(N/100mm) | Allowed Tensile Strength: | 1000N<10000N |
| Length: | 1-3KM/Roll | Packing: | Roll+Carton |
| High Light: | 4 Cores Outdoor FTTH Drop Cable,LSZH jacket Outdoor FTTH Drop Cable,3KM single mode armored fiber cable |
||

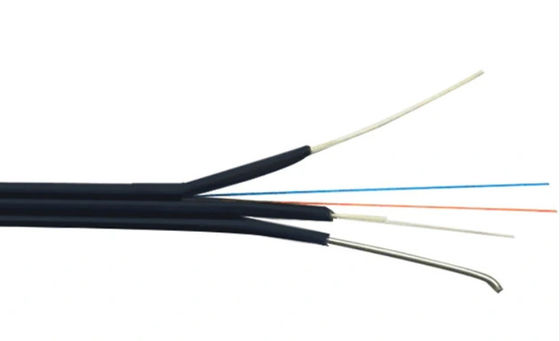

GJYXCH 4Cores Outdoor FTTH Drop Cable Single Mode FRP Strength Member G657A2
Description
Features
- Suitable for indoor or duct application
- Easy jacket removal without special tools
- Self-support structure
- Excellent crush and impact resistance
- Flame Retardant LSZH jacket is applied
- ITU-T G.657 fiber is available
- Available from 1 to 8-fiber counts
Applications
Used in access network oras access cable from outdoor to indoor
In customer premises network
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.
Performance
|
Type |
Max.Attenuation |
Tensile strength |
Crush resistance |
Min.Bending radius(Dynamic) |
|||
|
1310nm |
1550nm |
Short term |
Long term |
Short term |
Long term |
||
|
GJYXCH-4 |
0.36dB/km |
0.25dB/km |
80N |
40N |
1000N |
500N |
40.0×Cable-φ |
|
NO. |
Items |
Unit |
Specification | |
|
G.657A2 |
||||
|
1 |
Mode Field Diameter |
1310nm |
µm |
(8.6-9.5)±0.4 |
|
2 |
Cladding Diameter |
µm |
125.0±0.7 | |
|
3 |
Cladding Non-Circularity |
% |
≤1.0 | |
|
4 |
Core-Cladding Concentricity Error |
µm |
≤0.5 | |
|
5 |
Coating Diameter |
µm |
245±10 | |
|
6 |
Coating Non-Circularity |
% |
≤1.0 | |
|
7 |
Cladding-coating Concentricity Error |
µm |
<12.5 |
|
|
8 |
Cable Cutoff Wavelength |
nm |
λ cc ≤1260 | |
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
0.4 |
|
1550nm |
dB/km |
0.3 |
||
|
10 |
Macro-Bending Loss |
1 turn×7.5mm radius @1550nm |
dB |
≤0.5 |
|
1 turn×7.5mm radius @1625nm |
dB |
≤1.0 | ||
