| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | JIANGHONG or OEM |
| Certification: | ISO,TLC |
| Model Number: | SC/APC |
| Minimum Order Quantity: | 2000 PCS |
| Price: | Can Be Negotiated |
| Packaging Details: | Carton+Fumigated Wooden Tray |
| Delivery Time: | 5-8Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000KM per month |
| Product Name: | SC APC FTTH Fiber Optic Patch Cord | Type: | Single Model |
|---|---|---|---|
| Specification: | 2.0mm/3.0mm SC/APC Fiber Optical Patch Cord | Fiber Model: | G657a2 G657a1 G652d |
| Sheath Material: | LSZH Or PVC | Allowed Lateral Pressure: | 100(N/100mm)<1000(N/100mm) |
| Allowed Tensile Strength: | 1000N<10000N | Length: | Customized |
| High Light: | G652d outdoor fiber optic patch cable,3mm outdoor fiber optic patch cable,patch cord apc upc Single mode |
||
Description
The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides. Then the cable is completed with a black LSZH sheath.
Features
1. High reliability ;
2. 100% connectors tested ;
3. Repeatability: >1000 times ;
4. Deliery 100% passed products ;
5. Insertion Loss(SM): Typical<0.2dB, Max<0.3dB ;
6. Return Loss: UPC>50dB, APC>60dB ;
Performance
| Item | vaule |
| Ferrule end-face | PC UPC APC |
| Connector type | FC,SC,LC,ST,MTRJ,MU,E2000,MPO,DIN,D4 and SMA |
| Cable type | SX/LSZH |
| Mode | SM:9/125 |
| Cable diameter | 2.0mm,3.0mm |
| Insertion loss | ≤0.2 and ≤0.3dB |
| Return loss | ≥50 and ≥65dB |
| Exchangeability | ≤0.2dB |
| Vibration | ≤0.2dB |
| Operating temperature | -40 to 75 |
| Storage temperature | -45 to 85 |
| Tensile force | 50N/static state 30N/used state |
Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .

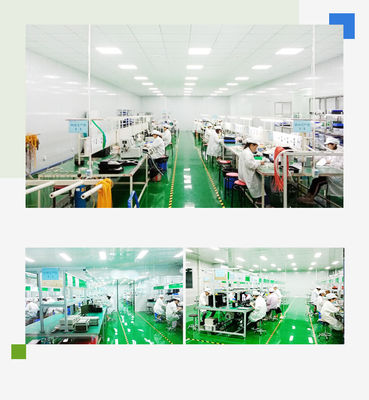

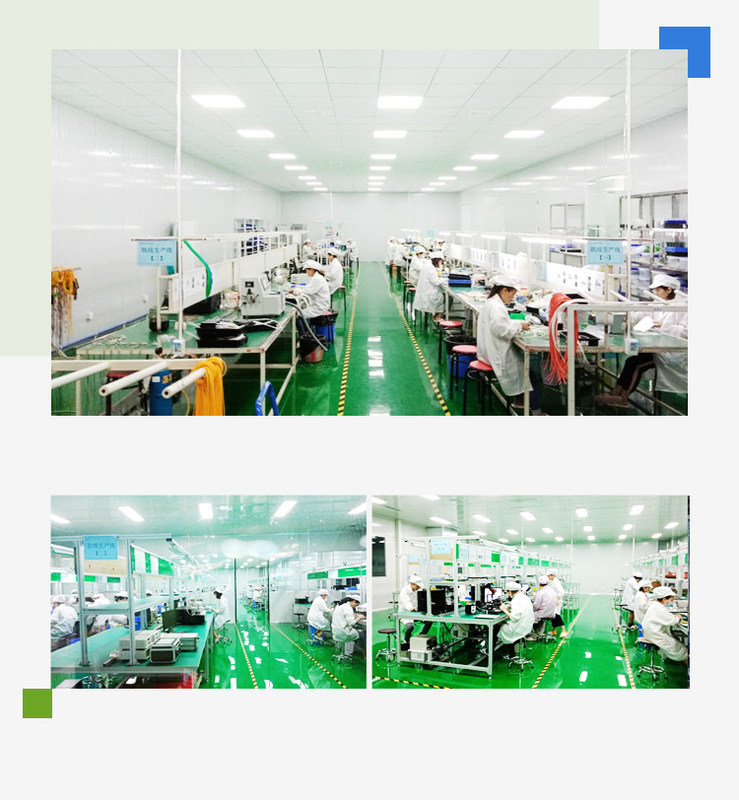

2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate
4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
