Application: | Communication | Type: | Single Model |
---|---|---|---|
Connection Structure: | Round Wire | Core: | 8 Cores |
Fiber Model: | G652D | Loose Tube Material: | PBT |
Armored: | Steel Wire And Plastic Composite Belt | Sheath Material: | HDPE |
Allowed Lateral Pressure: | >1000(N/100mm) | Allowed Tensile Strength: | 1000N<10000N |

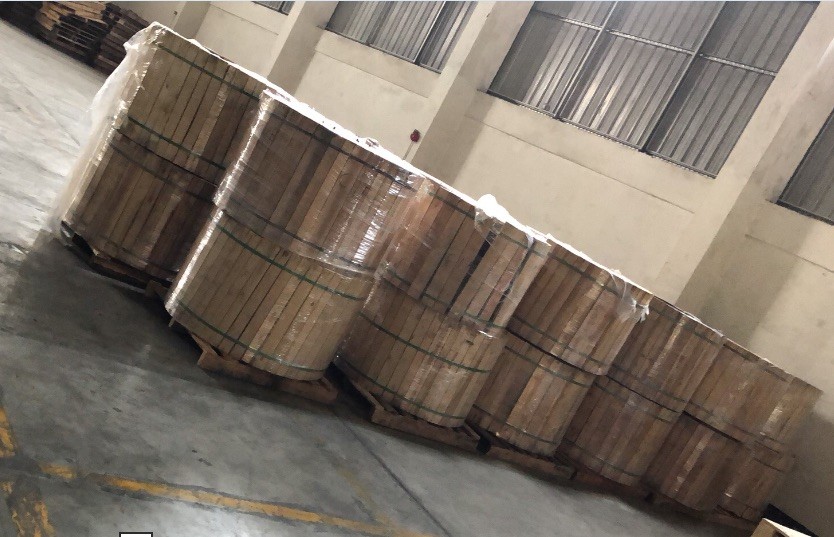

Length: | 2-4km/Drum |

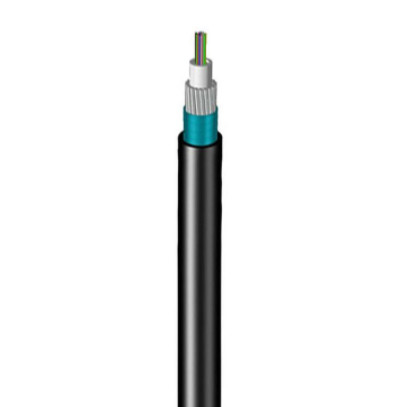

Central Loose Tube Armored Steel Wire Outdoor Fiber Optical Cable GYXTS 8Cores
DESCRIPTION
These cables are constructed with a central Loose tube filled with water blocking jelly, water blocking tape over the loose tube, a corrugated steel armouring with in the outer PE sheath give this cable excellent tensile strength, mechanical and environmental protection.
FEATURES
1. Excellent environment and mechanical performance
2. Small diameter, light weight and installation friendly
3. Their compact construction protect the loose tubefrom shrinking, the armour makes it crush, rodent and impact resistant
4. The water proofing tape and jelly protects it from water and moisture
5. The outer PE sheath gives it ultraviolet protection
APPLICATIONS
This cable is suitable for outdoor distribution through ducts and conduits. They come in larger delivery length, so can also be used in long distance communication system, service drop cables,building interconnections.
PERFORMANCE
Type | Max.Attenuation | Tensile strength | Crush resistance | Min.Bending radius(Dynamic) | |||
1310nm | 1550nm | Short term | Long term | Short term | Long term | ||
GYXTS-8 | 0.36dB/km | 0.22dB/km | 1500N | 600N | 1000N | 300N | 20D |
Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.
1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate
4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
