GYFXTY FRP Outdoor 8 Core Outdoor Fiber Cable Types Anti Rodent Black PE Sheath

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: Ce/ISO9001/Tlc
Model Number: GYFXTY-8
Minimum Order Quantity: 20,000 Meters
Price: Can be negotiable

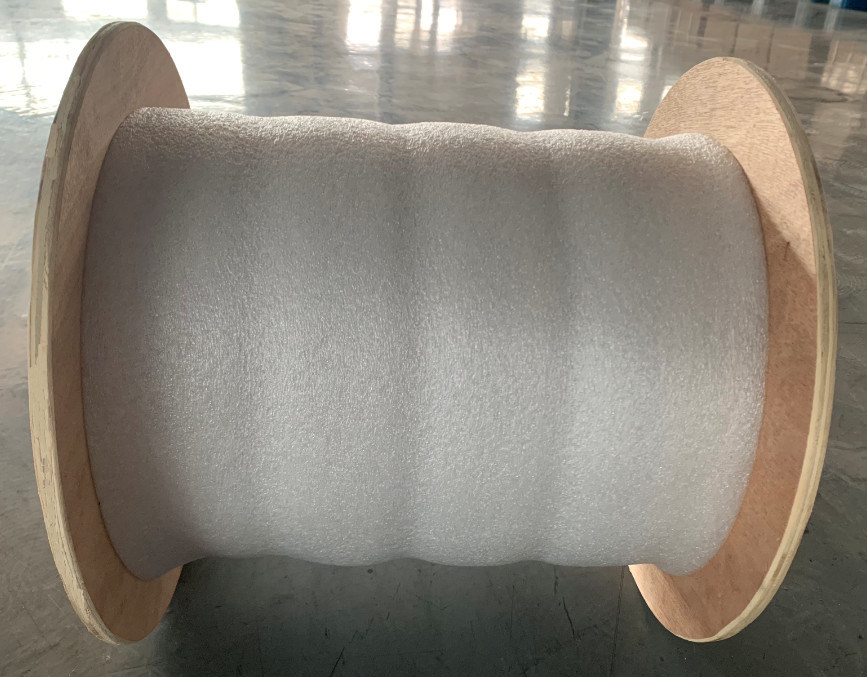

Packaging Details: Fumigated Wooden Tray
Delivery Time: 5-8Days
Supply Ability: 50000000m Per month
Application: Communication Type: Single-mode Fiber
Connection Structure: Round Wire Core: 8cores
Fiber Model: G652D Loose Tube Material: PBT(high Quality)
Armored: FRP Sheath Material: Black PE
Allowed Lateral Pressure: 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength: 100N<1000N
High Light:

GYFXTY 8 outdoor fiber cable types

,

FRP outdoor fiber cable types

,

Anti Rodent cable Black PE sheath

GYFXTY 8Cores Outdoor Fiber Optic Cable FRP Strength Member Anti Rodent

DESCRIPTION

It can be used in cable assemblies, outdoor distribution and transmission, places of high electro-magnetic interferences. Single jelly compound filled loose tube containing up to 12 fibers. PE sheath protects cable from ultraviolet radiation and heat, so can be used for outdoor applications.

CHARACTERISTICS
Non metallic FRP strength members in the cable give it good tensile strength and electro- magnetic protection.
Small diameter, light weight and thicker wall PE protection, giving it versatile applications.


APPLICATIONS
The cable is suitable for ducts and aerial applications for service drop cable, building interconnection in campus LAN, distribution and trunk cables.

PERFORMANCE

Item

Parameters

Loose tube

Material

PBT

Color

Natural color

Reinforced pieces

Material

FRP

Outer jacket

Material

PE

Color

Black

Min. bending radius

Static

10 times cable diameter

Dynamic

20 times cable diameter

Repeating bending

Load:150N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.

Tensile performance

Short term

1200N

Crush

Short term

1000N/100mm

Torsion

Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage.

Impact

Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.





Fiber Type

G.652D

Mode field diameter

1310nm

mm

9.2 ± 0.4

1550nm

mm

10.4 ± 0.8

Cladding diameter

mm

125.0 ± 1

Cladding non-circularity

%

1.0

Core concentricity error

mm

0.5

Coating diameter

mm

242 ± 7

Coating/cladding concentricity error

mm

12

Cable cut-off wavelength

nm

1260

Attenuation Coefficient

1310nm

dB/km

0.4

1550nm

dB/km

0.3

Proof stress level

kpsi

≥100



Company profile



SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
