RG6 Rg11 Messanger CCTV Coaxial Cable

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: ISO, CCC, Tlc
Model Number: RG6/RG11 Coaxial cable
Minimum Order Quantity: 10,000 Meters
Price: US $0.05-0.08 / Meter
Packaging Details: Fumigated Wooden Tray
Payment Terms: Western Union, T/T, D/A, L/C, D/P, , MoneyGram
Insulation Material: Foam PE Transport Package: Wooden Drum Or Box
HS Code: 8544491100 Application: Local Communication Cable, Coaxial Cable, CCTV CATV Satellite
Cover Material: PVC/HDPE Shield: Aluminum Foil+Aluminum Magnesium Alloy Wire
Fiber Specification: 20m/100m/200m/305m Trademark: JIANGHONG Or OEM
Conductor Type:: Solid Wire Core Material: Bare Copper Wire
High Light:

RG6 CCTV Coaxial Cable

,

Rg11 CCTV Coaxial Cable

,

rg6 pure copper cable 305m

RG6 Rg11 Messanger Wire &Copper Wire Coaxial Cable





DESCRIPTION

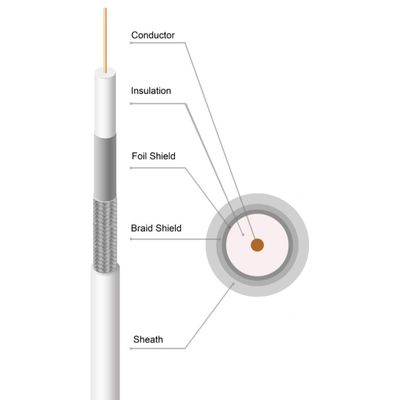

High-physics foamed coaxial cable is a semi-air insulated cable. The inner conductor is made of high-quality oxygen-free copper wire (or copper-clad aluminum wire or copper-clad steel wire);The mutually closed air holes, the adhesion between the insulation and the inner conductor is firm; the outer conductor is braided with aluminum foil longitudinally wrapped with aluminum-magnesium alloy wire or tinned copper wire; with a PVC or PE outer sheath.
Model:RG59,RG6,RG7,RG11,Q540

FEATURES


Low attenuation, high return loss;
good water resistance, aging resistance;


PERFORMANCE



Electrical Characteristics Nom.Impedance 75±3Ω
DC-resistance(20ºC) ≤9,578μΩ.cm
conductor resistance 98 Ω/km
propagation speed >82%
capacitance ≤53 pF / m
Return loss 5MHz - 300 MHz: ≥24 dB
300 MHz - 1200 MHz: ≥20 dB
performance Shielding effect 5MHZ≥95dB
300MHZ≥95dB
550MHZ≥100dB
1000MHZ≥1055dB
Attenuation 5MHZ<1.9dB/100m
55MHZ<5.25dB/100m
211MHZ<10dB/100m
250MHZ<10.28dB/100m
270MHZ<11.04dB/100m
300MHZ<11.64dB/100m
330MHZ<12.26dB/100m
350MHZ<12.63dB/100m
400MHZ<13.61dB/100m
450MHZ<14.43dB/100m
500MHZ<15.29dB/100m
550MHZ<16.08dB/100m
600MHZ<16.73dB/100m
750MHZ<18.54dB/100m
870MHZ<20.04dB/100m
1000MHZ<21.49dB/100m
1200MHZ<23.50dB/100m
1450MHZ<25.79dB/100m
1750MHZ<28.61dB/100m
2000MHZ<30.58dB/100m
3000MHZ<37.73dB/100m
RG6 Rg11 Messanger CCTV Coaxial Cable 0RG6 Rg11 Messanger CCTV Coaxial Cable 1RG6 Rg11 Messanger CCTV Coaxial Cable 2
