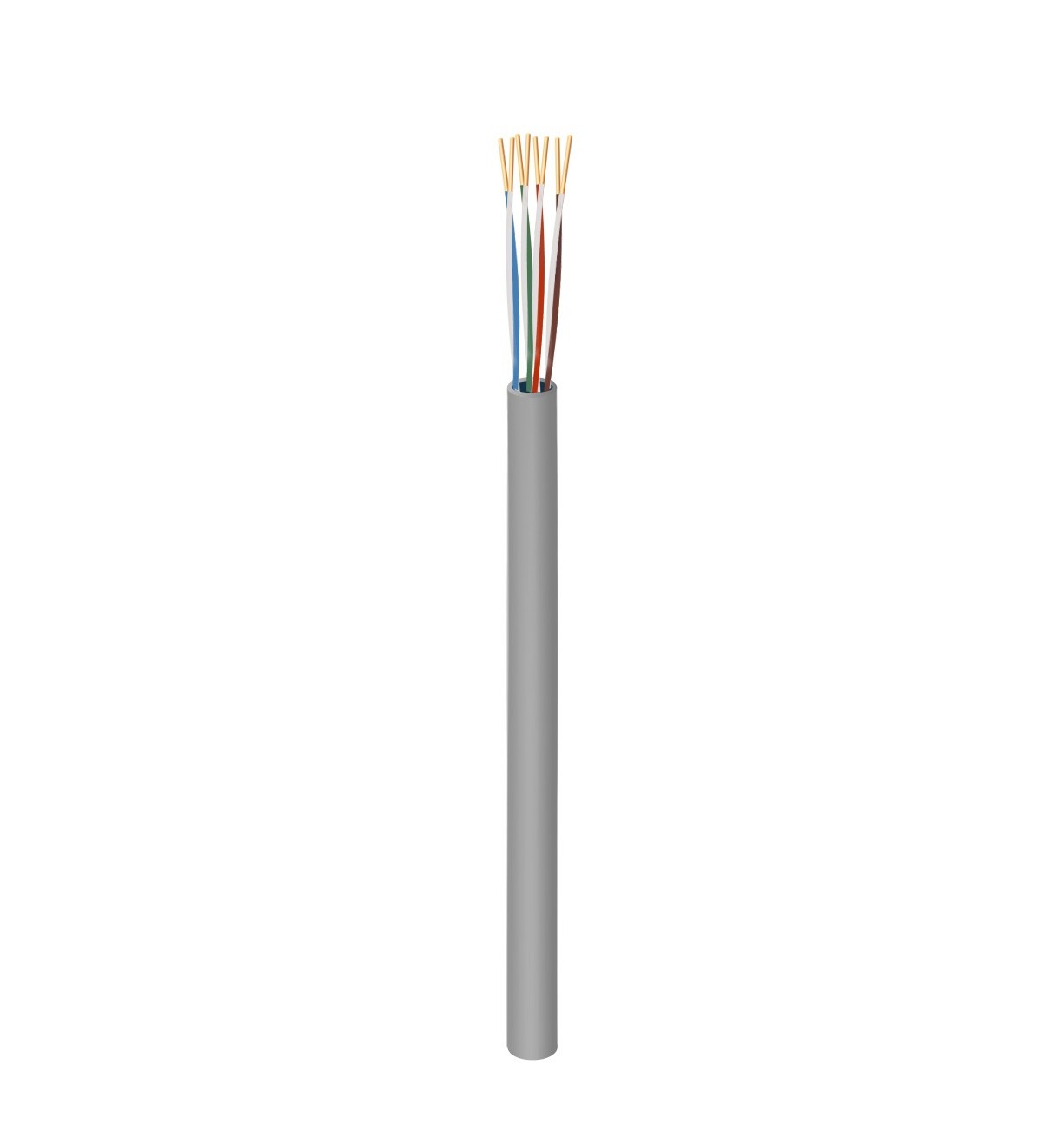

8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: ISO,TLC
Model Number: UTP CAT5
Minimum Order Quantity: 30500 Meters
Price: Can Be Negotiated
Packaging Details: Carton+Fumigated Wooden Tray
Delivery Time: 5-8Days
Payment Terms: L/C, T/T
Supply Ability: 3050000M per month
Product Name: UTP CAT5 LAN CABLE Application: Networking Communication
Core: 8 Cores Conductor: Copper
Insulation: HDPE Sheath Material: LSZH Or PVC
Length: 305M Package: Carton+pallet
High Light:

8 cores UTP LAN CABLE

,

UTP LAN CABLE LSZH jacket

,

cat 5 utp patch cable 305M

UTP CAT5 LAN CABLE



Description

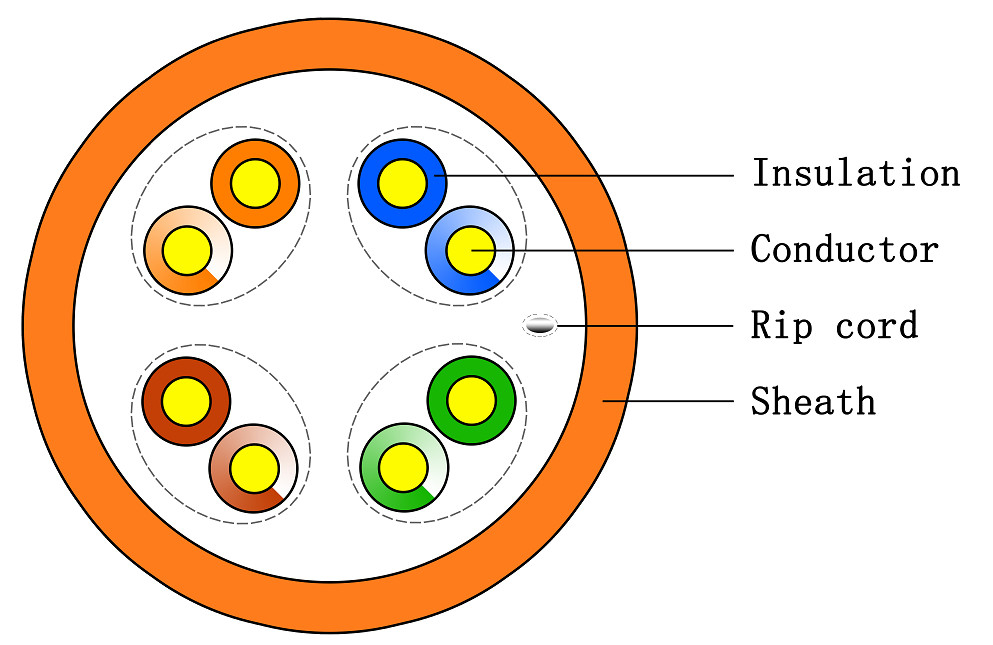

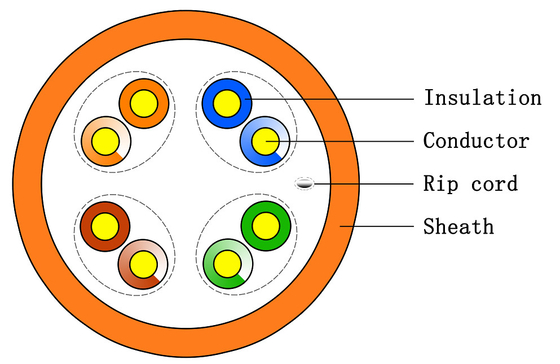

Twisting a pair of mutually insulated metal wires in a counterclockwise direction at a certain density can effectively reduce signal interference, and then wrap 4 pairs of twisted pairs into PVC or LSZH cable jacket.


Features



Low attenuation, low crosstalk

Connecting between Ethernet and network device
Comes with a simple pull box for easy wiring construction



Applications


network cabling


Performance



Electrical Characteristics
Frequency (MHz) ATT(≤dB/100m) NEXT(≥dB) ELFEXT(≥dB)
1 2.04 62.3 60.0
4 4.1 55.3 49.0
10 6.5 47.3 41.0
20 9.3 42.8 35.0
31.25 11.7 39.9 31.1
62.5 17.0 35.2 25.0
100 22.0 32.3 21.0
Characteristic Impedance 100±15Ω D-C Resistance Unbalance ≤2.5%
Delay Skew ≤40ns/100m D-C Resistance ≤11.5Ω/100m
Phase Delay ≤538ns/100m Operating Temperature -20℃~+60℃





Company profile



SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .

8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable 0

8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable 1



8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable 2

8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable 3

8 Cores CAT5 Bare Copper UTP LAN CABLE Patch 1000ft Network Cable 4
