Cat5e Ethernet Copper Shield FTP LAN CABLE Fluke Test 305m Ethernet Networking Cable

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: ISO,TLC
Model Number: FTP CAT5(Copper)
Minimum Order Quantity: 30500 Meters
Price: Can Be Negotiated
Packaging Details: Carton+Fumigated Wooden Tray
Delivery Time: 5-8Days
Payment Terms: L/C, T/T
Supply Ability: 3050000M per month
Product Name: FTP CAT5E LAN CABLE Application: Networking Communication
Core: 4 Pairs Conductor: Bare Copper
Insulation: HDPE Sheath Material: LSZH PE
Length: 305M Package: Carton+pallet
High Light:

Copper Shield FTP LAN CABLE

,

FTP LAN CABLE HDPE Insulation

,

50 ft cat5e ethernet cable 305M

FTP CAT5E LAN CABLE



Description

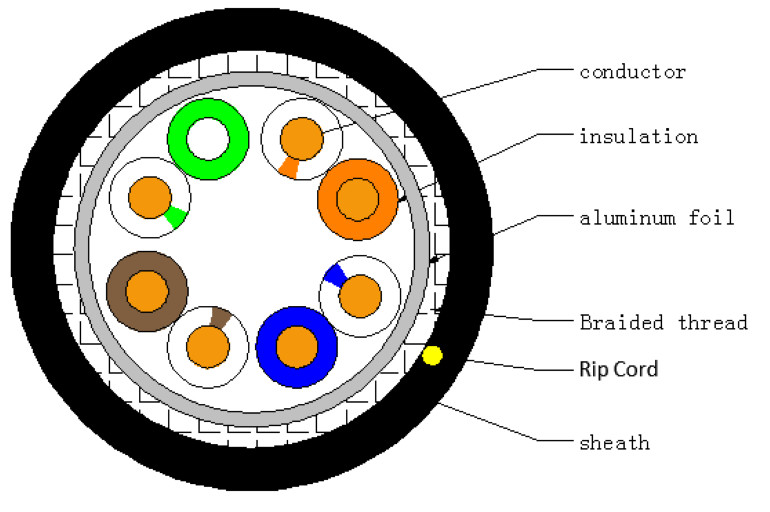

FTP CAT5E LAN CABLE is twisting a pair of mutually insulated metal wires in a counterclockwise direction at a certain density, can effectively reduce signal interference, and then wrap 4 pairs of twisted pairs into PVC or LSZH cable jacket.


Features



Low attenuation, low crosstalk;

Foil shield reduces ingress of EMI interference to ensure cable performance at high frequency levels.



Applications


Indoor / Outdoor, For the military, hospitals, banking and financial systems, etc.

Performance





Electrical Characteristics



Frequency (MHz) ATT(≤dB/100m) NEXT(≥dB) ELFEXT(≥dB) PS NEXT(≥dB) PS ELNEXT(≥dB)
4 4.0 56.3 52 53.3 49
10 6.2 50.3 44 47.3 41
20 8.5 45.8 38 42.8 35
31.25 11.4 42.9 34.1 39.9 31
62.5 16.6 38.4 28.0 35.4 25.1
100 21.7 35.3 24.0 32.3 21.0
Characteristic Impedance 100±10Ω D-C Resistance Unbalance ≤2%
Delay Skew ≤45ns/100m D-C Resistance ≤10.2Ω/100m
Phase Delay ≤536ns/100m Operating Temperature -20℃~+60℃


Company profile



SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .

Cat5e Ethernet Copper Shield FTP LAN CABLE Fluke Test 305m Ethernet Networking Cable 0

Cat5e Ethernet Copper Shield FTP LAN CABLE Fluke Test 305m Ethernet Networking Cable 1



Cat5e Ethernet Copper Shield FTP LAN CABLE Fluke Test 305m Ethernet Networking Cable 2

Cat5e Ethernet Copper Shield FTP LAN CABLE Fluke Test 305m Ethernet Networking Cable 3

Cat5e Ethernet Copper Shield FTP LAN CABLE Fluke Test 305m Ethernet Networking Cable 4
