48 72 96 Cores Armor Stranded Outdoor Fiber Optic Cable GYTZA53 Double jacket

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: Ce/ISO9001/Tlc
Model Number: GYTZA53
Minimum Order Quantity: 20,000 Meters
Price: Can be negotiable
Packaging Details: Fumigated Wooden Tray
Delivery Time: 5-8Days
Supply Ability: 50000000m Per month
Application: Communication Wiring Type: SM
Connection Structure: Stranded Loose Tube Core: 24-144cores
Fiber Model: G652D Or G657A Loose Tube Material: PBT
Armored: Aluminum And Steel Sheath Material: HDPE MDPE LSZH(Double Jacket)
Length: 2-4km/Drum Or Customized Transport Package: Wooden Drum

GYTZA53 Aluminum Armor Stranded Outdoor Fiber Optic Cable Single Mode 24 48 72 96 144 256Cores



DESCRIPTION


GYTZA53 Stranded outdoor fiber optic cable is to insert optical fiber into a loose tube made of high modulus material, filled with water-blocking compounds. A layer of polyethylene should be extruded outside the metal reinforced core. The loose tube and filling rope around the center strengthen the core winch to form a compact and round cable core. The gap in the cable core is filled with water blocking fillings. A layer of polyethylene inner sheath is squeezed behind the plastic aluminum strip. Two-sided coated plastic strip extruded flame-retardant protective cover into cable.


FEATURES


Low loss and dispersion of optical fiber transmission;
Full cross section water-blocking structure to ensure water-blocking and moisture proof performance;
With double armor and double protective structure, the product has excellent mechanical compressive and tensile performance and anti-rat performance;
Low smoke, no halogen flame retardant sheath, safe environment and no poison;


APPLICATIONS


Duct and Direct burial

FEATURES


Low loss and dispersion of optical fiber transmission;
The loose tube is filled with special oil ointment, which provides the key protection to the
optical fiber;
Specially designed compact fiber optic cable structure effectively prevents casing retraction;


APPLICATIONS


Into the Bureau, Tunnel, Aerial


PERFORMANCE

Type Max.Attenuation Tensile test  Crush test  Min.Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYTZA53 0.36dB/km 0.22dB/km 4000N 2000N 3000N 1000N 25D

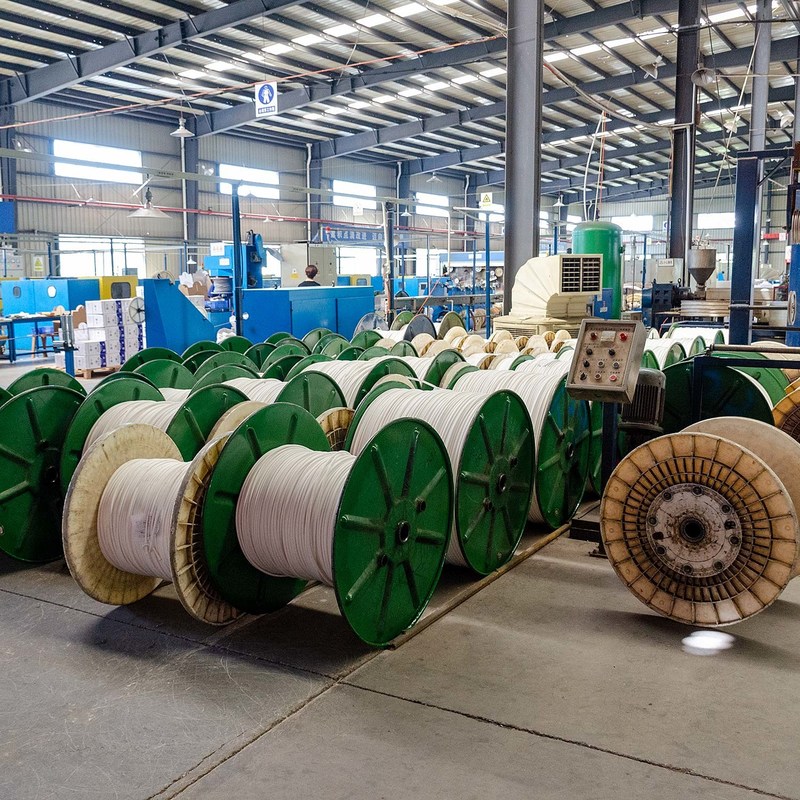

Company profile



SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .

48 72 96 Cores Armor Stranded Outdoor Fiber Optic Cable GYTZA53 Double jacket 0

48 72 96 Cores Armor Stranded Outdoor Fiber Optic Cable GYTZA53 Double jacket 1
48 72 96 Cores Armor Stranded Outdoor Fiber Optic Cable GYTZA53 Double jacket 2
48 72 96 Cores Armor Stranded Outdoor Fiber Optic Cable GYTZA53 Double jacket 3
48 72 96 Cores Armor Stranded Outdoor Fiber Optic Cable GYTZA53 Double jacket 4
