48 Cores Armor Steel Aluminum band Stranded Outdoor Fiber Optic Cable GYFTY

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: Ce/ISO9001/Tlc
Model Number: GYFTY-48
Minimum Order Quantity: 20,000 Meters
Price: Can be negotiable
Packaging Details: Fumigated Wooden Tray
Delivery Time: 5-8Days
Supply Ability: 50000000m Per month
Application: Communication Telecommunication Type: SM Fiber
Connection Structure: Stranded Loose Tube Core: 48cores
Fiber Model: G652D Loose Tube Material: PBT
Armored: Plastic Coated AL Or Steel Band Sheath Material: HDPE LSZH
Length: 2-4km/Drum Transport Package: Wooden Drum

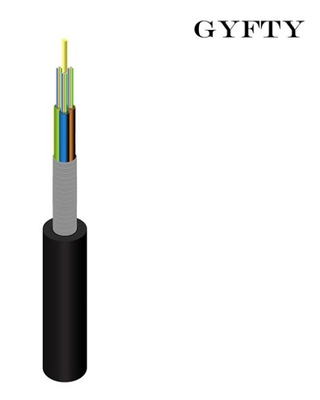

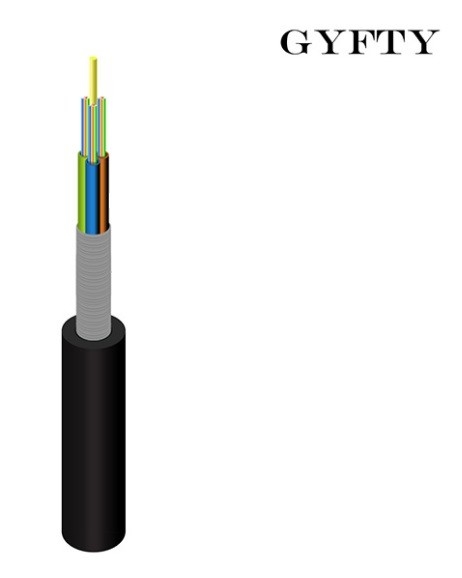

GYFTY-48 Armor Stranded Outdoor Fiber Optic Cable Single Mode 24 48 72 96 144 256Cores



The center is a metal reinforcing rib, and the material is generally phosphated steel wire.
Fiber 200/250µm is placed in PBT loose tube with waterproofing compound.
The loose tube is then twisted around the strength member into a compact circular cable core. The cable core is filled with filler compound to prevent water ingress. It is equipped with aluminum tape or steel tape as armor to protect the cable, and the outermost layer is PE or LSZH jacket.



FEATURES


Excellent mechanical and environmental performance
Good cursh resistance
Gel-filled Loose tube protect the fiber well
Good waterproof performance

APPLICATIONS


Into the Bureau, Tunnel, Aerial


PERFORMANCE

Type Max.Attenuation Tensile test  Crush test  Min.Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYFTY-48 0.36dB/km 0.22dB/km 1500N 600N 1000N 300N 20D



Company profile



SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .

48 Cores Armor Steel Aluminum band Stranded Outdoor Fiber Optic Cable GYFTY 0

48 Cores Armor Steel Aluminum band Stranded Outdoor Fiber Optic Cable GYFTY 1
48 Cores Armor Steel Aluminum band Stranded Outdoor Fiber Optic Cable GYFTY 2
48 Cores Armor Steel Aluminum band Stranded Outdoor Fiber Optic Cable GYFTY 3
48 Cores Armor Steel Aluminum band Stranded Outdoor Fiber Optic Cable GYFTY 4
