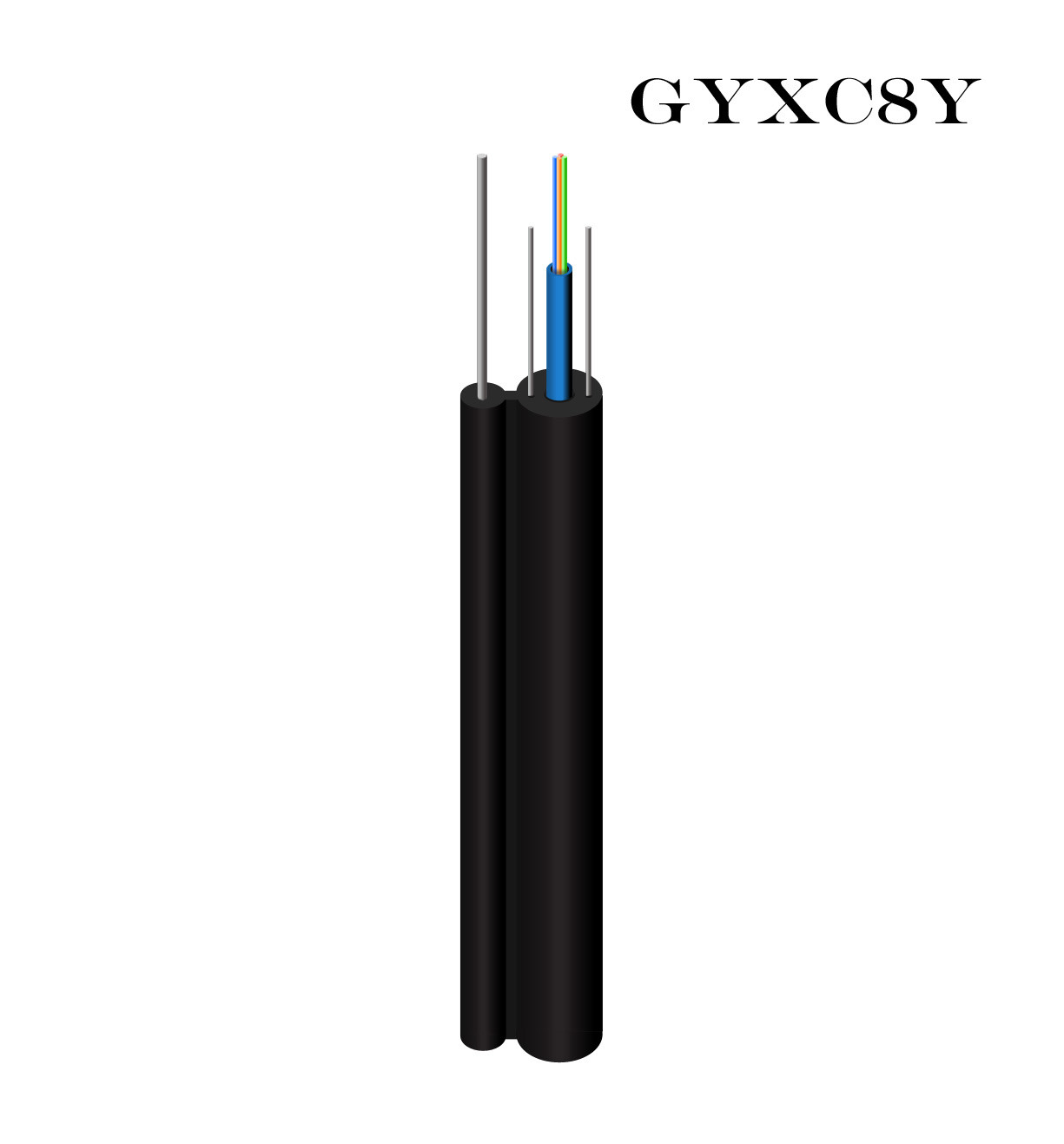

G652D Self Supporting Fiber Optic Cable

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: Ce/ISO9001/Tlc
Model Number: GYXC8Y
Minimum Order Quantity: 20,000 Meters
Price: Can be negotiable
Packaging Details: Fumigated Wooden Tray
Delivery Time: 5-8Days
Supply Ability: 50000000m Per month
Type: SM Fiber Connection Structure: Figure-8 Self-Supporting
Core: 12-48cores Fiber Model: G652D
Loose Tube Material: PBT Sheath Material: HDPE
Length: 2-4km/Drum Or Customized Packing: Fumigated Wooden Tray
High Light:

G652D Self Supporting Fiber Optic Cable

,

SM Self Supporting Fiber Optic Cable

,

figure 8 cable HDPE sheath

Single Fiber Overhead Fig8 Self Supporting Fiber Optic Cable 12 24 48 72Cores



DESCRIPTION



This product is to put the optical fiber into a loose tube made of high modulus material, and the loose tube is filled with a waterproof compound. The loose tube is added with water blocking material to ensure the longitudinal water blocking of the optical cable. Two parallel steel wires are placed on both sides on the outside of the optical cable and a reinforcing element is added to the steel wire hanging wire.



FEATURES


Two parallel steel wires ensure the tensile strength of the optical cable;
Single phosphating steel wire is used as hanging wire, which is convenient for short-distance self-supporting overhead laying;
Small diameter, light weight and low cost;
The loose tube material itself has good hydrolysis resistance and high strength;


PERFORMANCE

Type Max.Attenuation Tensile test  Crush test  Min.Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYXC8Y 0.36dB/km 0.22dB/km 1000N 300N 1000N 300N 20D



Company profile



SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .

G652D Self Supporting Fiber Optic Cable 0

G652D Self Supporting Fiber Optic Cable 1
G652D Self Supporting Fiber Optic Cable 2
G652D Self Supporting Fiber Optic Cable 3
G652D Self Supporting Fiber Optic Cable 4
