G657A1 G657A2 Burial 4 Core Outdoor Fiber Optic Cable Steel Belt Steel Wire

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: Ce/ISO9001/Tlc
Model Number: GYXTW-4
Minimum Order Quantity: 20,000 Meters
Price: Can be negotiable
Packaging Details: Fumigated Wooden Tray
Delivery Time: 5-8Days
Supply Ability: 50000000m Per month
Application: Communication Outdoor Type: Single-mode Fiber
Connection Structure: Round Wire Core: 4cores
Fiber Model: G652D G657A1 G657A2 Loose Tube Material: PBT(high Quality)
Strength Member: Steel Wire Armored: Steel Belt
Sheath Material: HDPE Length: 2-4km/Drum
High Light:

G657A1 4 core outdoor cable

,

G657A2 4 core outdoor cable

,

2KM burial fiber optic cable

GYXTW Outdoor Fiber Optic Cable Single Mode 2 4 8 12 Cores



DESCRIPTION

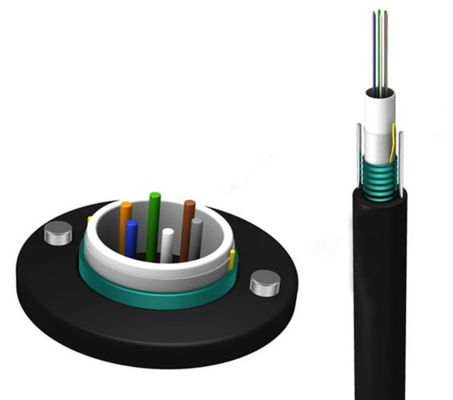

GYXTW outdoor fiber optic cable is to insert optical fiber into a loose tube made of high modulus material, filled with water-blocking compounds. Outside the loose tube plus water-blocking material to ensure longitudinal water blocking of cable.Steel tape armored for better rodent resistance, Two parallel steel (FRP) wires are placed on both sides to squeeze the polyethylene sheath into the cable.

FEATURES


1. Low dispersion and attenuation
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
3. Compact structure and lightness, flexible and good bend-resistant performance
4. With small cable diameter, light cable weight, self-supporting


APPLICATIONS


1. Suitable for aerial, pipeline laying method
2. Long distance and local area network communication
3. With small cable diameter, light cable weight, easily to lay
4. Rural communication, local trunk line, CATV & computer networks system


PERFORMANCE

Type Max.Attenuation Tensile test  Crush test  Minimum Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYXTW-4 0.36dB/km 0.22dB/km 1500N 600N 1000N 300N 20D



Company profile



SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
