G657A1 GYTA53 Aluminium Armored Single Mode Outdoor Fiber Cable 72 Core

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: Ce/ISO9001/Tlc
Model Number: GYTA53-72
Minimum Order Quantity: 20,000 Meters
Price: Can be negotiable
Packaging Details: Fumigated Wooden Tray
Delivery Time: 5-8Days
Supply Ability: 50000000m Per month
Application: Communication Outdoor Type: SM Optic Fiber
Connection Structure: Stranded Core: 72cores
Fiber Model: G652D G657A1 G657A2 Loose Tube Material: PBT(high Quality)
Armored: Aluminum Tape Armored Sheath Material: HDPE Or MDPE(Double Jacket)
Length: Customized Service Transport Package: Wooden Drum Or Customized
High Light:

G657A1 single mode outdoor fiber cable

,

GYTA53 single mode outdoor fiber cable

,

aluminium armored cable 72 Core

Armored Aluminum Tape Anti-Rodent Outdoor Fiber Optic Cable GYTA53 72Cores Cable

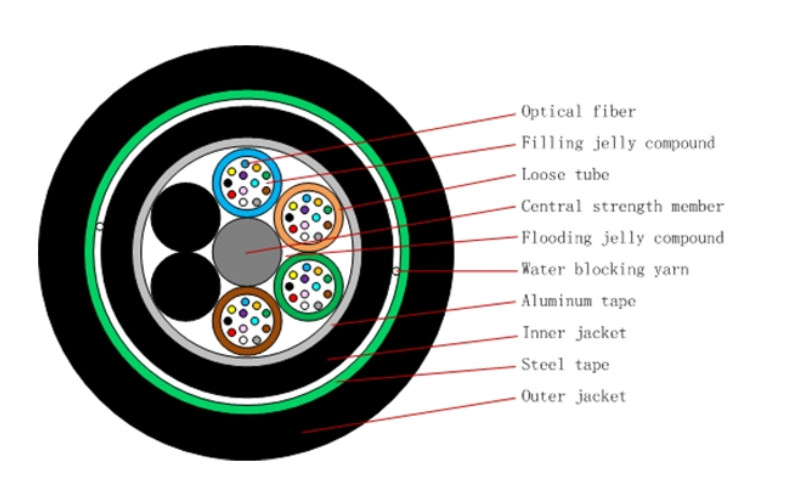

DESCRIPTION


Fiber:12-288 fibers Multi loose tube gel-filled
Central Strength Member:Metallic steel wire
Inner Jacket:Black UV and waterproof polyethylene (PE).

Armor:Aluminum tape
Outer Jacket:Black UV and waterproof polyethylene (PE).


FEATURES


Loose tube gel-filled construction for superiorfiber protection.
Double jacket single armored(GYTA53) and Double jacket double armored
(GYTA53) for rodent pr.otection and direct burial.
UV and moisture-resistant design


APPLICATIONS


Interbuilding voice or data communication backbones.
Installed in ducts, underground conduits or direct buried.


PERFORMANCE

Item Parameters
Loose tube Material PBT
Color Full color spectrum
Filer Material PE
Color Black
Central strength member Material Phosphating steel wire
Armoured Material Plastic coated aluminum strip
Inner jacket Material PE
Color Black
Outer jacket Material MDPE
Color Black
Min. bending radius Static 12.5 times cable diameter
Dynamic 25 times cable diameter
Repeating bending Load:250N;number of cycles:30 No obvious addition attention, no fiber break and no cable damage.
Tensile performance Short term 3000N 0.1dB,0.15%
3000N The addition attention≤0.1dB,fiber strain ≤0.15%
Crush Short term 3000N/100mm 0.1dB
3000N/100mm The addition attention≤0.1dB
Torsion Load:150N; number of cycles:10; twist angle:±180° No obvious addition attention, no fiber break and no cable damage
Impact Impact energy:450g×1m; radius of hammer head:12.5mm; number of impact: 5 No obvious addition attention, no fiber break and no cable damage.



Company profile



SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
