GJXFH GJYXCH GJYXFCH Indoor Armored Fiber Optic Cable G657a Drop Cable For Ftth

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: ISO,TLC
Model Number: GJXH
Minimum Order Quantity: 20,000 Meters
Price: Can Be Negotiated
Packaging Details: Carton+Fumigated Wooden Tray
Delivery Time: 5-8Days
Payment Terms: L/C, T/T
Supply Ability: 50000KM per month
Product Name: 2 Core Indoor Fiber Optic Cable Core: 2core
Application: Communication Indoor Building Wiring Fiber Model: G657A2 G657A1 G652D
Strength Member: Steel Sheath Material: LSZH PVC PE
Trademark: Fumigated Wooden Tray Specification: 2km/Drum Or Customized
Usage: FTTH FTTB FTTX Communications Type: Single Mode G657a
High Light:

GJYXFCH indoor armored fiber optic cable

,

indoor armored fiber optic cable g657a

,

gjyxch

Fiber Optic Cable GJXH GJXFH GJYXCH GJYXFCH GJYFJCH g657a Drop Cable for Ftth



Single Mode 2 Core Indoor Fiber Optic Cable Steel Strength Member Drop cable



1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;

2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;

2.1 Single steel wire as the additional strength member ensures good performance of tensile strength.

3. Simple structure, light weight and high practicability;

4. Novel flute design, easily strip and splice, simplify the installation and maintenance;

5. Low smoke, zero halogen and flame retardant sheath.

6. Comply with IEC 60332-3 Flame resistance performance.

7. Comply with IEC 60794-2



Description

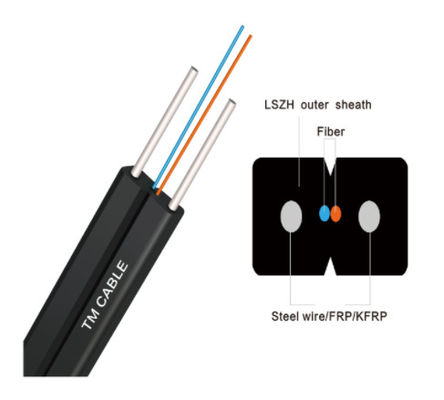

Single mode 2 core indoor Fiber Optic Cable is to place the optical fiber in the center, place two parallel steel wire strength members on both sides, squeeze a low-smoke, halogen-free flame or pvc retardant sheath into cable.


Features


1. Unique groove design, easy to strip and installation;

2. Good mechanical and flame retardant characteristics;
3. Small bending radius;

4. Soft, flexible, easy to splice fiber, and with big capacity data transmission;

Applications


Indoor building wiring and end users directly cabling

Performance



Type

Max.Attenuation

Tensile strength

Crush resistance

Min.Bending radius(Dynamic)

1310nm

1550nm

Short term

Long term

Short term

Long term

GJXH

0.36dB/km

0.25dB/km

80N

40N

1000N

500N

40.0×Cable-φ
