| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | JIANGHONG or OEM |
| Certification: | Ce/ISO9001/Tlc |
| Model Number: | Fiber Optic Cable Gyta53 |
| Minimum Order Quantity: | 20,000 Meters |
| Price: | Can be negotiable |
| Packaging Details: | Fumigated Wooden Tray |
| Delivery Time: | 5-8Days |
| Supply Ability: | 50000000m Per month |
| Application: | Direct Buried,duct Or Underground Conduit | Fiber Model: | Single Mode G652D |
|---|---|---|---|
| Connection Structure: | Stranded Loose Tube | Core: | 48-144 Core |
| Loose Tube Material: | PBT Tube | Armored: | Aluminum Tape |
| Sheath Material: | PE | Install Tensile: | 3000N |
| Length: | 2-4km/Drum Or Customized | Transport Package: | Wooden Drum |
| High Light: | Underground Armoured Fiber Optic Cable,G.652D SM Fiber Optic Cable,Fiber Optic Cable GYTA53 |
||
Underground Armoured Fiber Optic Cable G.652D SM 12/24/48/96 Core GYTA53
DESCRIPTION

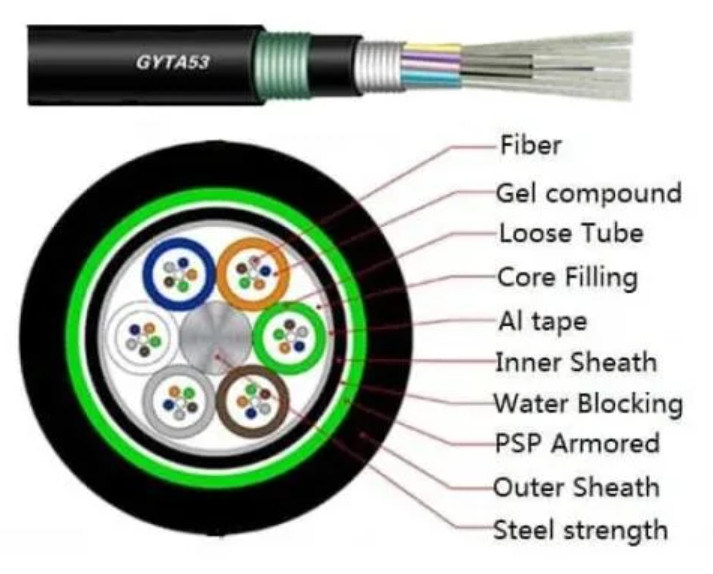

In the GYTA53 cable, the single-mode/multi-mode fiber is located in a loose tube filled with a water-blocking filler. The tube and filler are twisted around the strength member into a circular cable core. Aluminium Polyethylene Laminate (APL) is applied around the core. It's filled with filler compound to protect it. Then complete the cable with a thin PE jacket. After applying PSP to the inner jacket, the cable is finished with the PE outer jacket.
FEATURES
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5. The following measures are taken to ensure the cable watertight:
6. Steel wire used as the central strength member
7. Loose tube filling compound
8. 100% cable core filling
9. APL moisture barrier
10. PSP enhancing moisture-proof
11.Water-blocking material
APPLICATIONS
Direct burial, ground burial, pipe piercing
PERFORMANCE
| Type | Max.Attenuation | Tensile test | Crush test | Min.Bending radius | |||
| 1310nm | 1550nm | Short term | Long term | Short term | Long term | ||
| GYTA53-48 | 0.36dB/km | 0.22dB/km | 4000N | 2000N | 3000N | 1000N | 25D |
Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.
1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate
4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
