| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | JIANGHONG or OEM |
| Certification: | ISO,TLC |
| Model Number: | GJXFH-2 |
| Minimum Order Quantity: | 20,000 Meters |
| Price: | Can Be Negotiated |
| Packaging Details: | Carton+Fumigated Wooden Tray |
| Delivery Time: | 5-8Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000KM per month |
| Product Name: | Indoor FTTH Drop Cable | Core: | 1-4 |
|---|---|---|---|
| Application: | Indoor Wiring | Type: | SM Fiber |
| Fiber Model: | G657a2 G657a1 | Sheath Material: | LSZH |
| Length: | 1-3KM/Reel | Package: | Roll+carton+pallet |
| High Light: | GJXFH-2 fiber internet cables,single mode duplex fiber optic cable 2 Cores,single mode duplex fiber FRP Strength |
||
2 Cores FRP strength member Indoor Fiber Optic Cable Single mode FTTH Drop Cable
Description

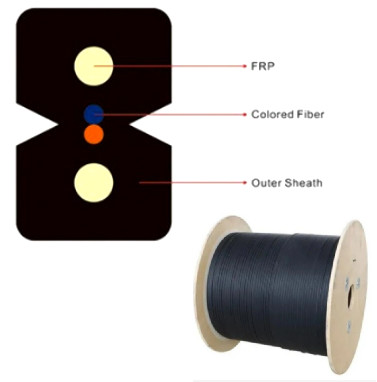

The fiber optic unit is located in the center. Two parallel pieces of fiber reinforced plastic (FRP) are placed on both sides. The cable is then fitted with a black LSZH sheath.
Features
Soft, flexible, easy to splice fiber, and with big capacity data transmission;
Applications
Indoor building wiring
Performance
|
Type |
Max.Attenuation |
Tensile strength |
Crush resistance |
Min.Bending radius |
|||
|
1310nm |
1550nm |
Short term |
Long term |
Short term |
Long term |
||
|
GJXFH-2 |
0.36dB/km |
0.25dB/km |
80N |
40N |
1000N |
500N |
40.0×Cable-φ |
Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.
1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate
4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
