| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | JIANGHONG or OEM |
| Certification: | ISO,TLC |
| Model Number: | UTP CAT5E CCA |
| Minimum Order Quantity: | 30500 Meters |
| Price: | Can Be Negotiated |
| Packaging Details: | Carton+Fumigated Wooden Tray |
| Delivery Time: | 5-8Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3050000M per month |
| Product Name: | UTP CAT5E | Application: | Local Communication Cable, LAN Cable, Network Communication |
|---|---|---|---|
| Core: | 8cores(4 Pairs) | Conductor: | CCA CU |
| Insulation: | HDPE | Sheath Material: | PVC LSZH |
| Length: | 1000ft/roll Or Customized | Package: | Roll+Carton |
| High Light: | UTP cat5e 24awg,24awg ethernet cable 1000ft,24awg cat5e Fluke Test |
||

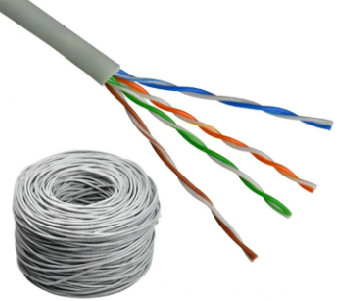

UTP CAT5E CCA CU AWG24 UTP LAN CABLE Fluke Test Ethernet Networking Wire1000ft
Material Instruction
1.CCA or 24AWG soft pure copper.
2. Select new materials that are environmentally friendly and non-polluting. Only commit to new materials.
3. Insulation material: solid HDPE;
4. Environmental protection PVC/LSZH sheath, high temperature resistance, long service life.
Appliacation
1. Exceeds ANSI/TIA-568B. 2 and ISO 11801 2nd Edition E Category 5e channel standards.
2. Exceed the requirements of ANSI/TIA-568B. 2 and IEC 61156-5 Category 5e component standards;
3. Meet the requirements of IEEE 802.3af and IEEE 802.3at for PoE applications.
4. Foil shielding reduces the entry of EMI interference to ensure cable performance at high frequency levels.
5. Length cable markers allow for easy identification of remaining cables, reducing installation time and cable waste.
6. Available colors: Other cable colors are available.
Performance
| Electrical Characteristics | ||||||
| Frequency (MHz) |
ATT (≤dB/100m) |
NEXT (≥dB) |
ELFEXT (≥dB) |
PS NEXT (≥dB) |
PS ELNEXT (≥dB) |
Loss return (dB) |
| 1 | 2.4 | 65.3 | 63.8 | 62.3 | 60.8 | 27 |
| 4 | 4.9 | 56.3 | 51.7 | 53.3 | 48.7 | 26.5 |
| 8 | 6.9 | 51.8 | 45.7 | 48.8 | 42.7 | 25.5 |
| 10 | 7.8 | 50.3 | 43.8 | 47.3 | 40.8 | 25 |
| 16 | 9.9 | 47.3 | 39.9 | 44.3 | 36.7 | 25 |
| 20 | 11.1 | 45.8 | 37.7 | 42.8 | 34.7 | 25 |
| 25 | 12.5 | 44.3 | 35.8 | 41.3 | 32.8 | 24.2 |
| 31.25 | 14.1 | 42.9 | 33.9 | 39.9 | 30.9 | 23.3 |
| 62.5 | 20.4 | 38.34 | 27.8 | 35.4 | 24.8 | 20.7 |
| 100 | 26.4 | 35.3 | 23.8 | 32.3 | 20.8 | 19 |
| Characteristic Impedance | 100±15Ω | D-C Resistance Unbalance | ≤2% | |||
| Delay Skew | ≤40ns/100m | D-C Resistance | ≤14.0Ω/100m | |||
| Phase Delay | ≤538ns/100m | Operating Temperature | -10° C~+60° C | |||
| Minimum insulation resistance at 15 ° C at 500 V DC | 5000MΩ/KM | Dielectric strength between conductors | ≥2500V DC/2s | |||
| Maximum working capacitance 1kHz | ≤5.6nF/100m | Propagation speed | 66% | |||
Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.
1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate
4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
