| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | JIANGHONG or OEM |
| Certification: | ISO,TLC |
| Model Number: | UTP CAT6 |
| Minimum Order Quantity: | 30500 Meters |
| Price: | Can Be Negotiated |
| Packaging Details: | Carton+Fumigated Wooden Tray |
| Delivery Time: | 5-8Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 3050000M per month |
| Product Name: | UTP CAT6 Communication Cable | Application: | Network Cabling |
|---|---|---|---|
| Core: | 8cores(4 Pairs) | Conductor Type: | Solied Or Stranded |
| Conductor Material: | CCA | Insulation: | PE |
| Sheath Material: | LSZH | Length: | 305m/roll |
| Color: | Blue/grey/white/black/orange Etc. | ||
| High Light: | CCA wire pairs in communication,CCA UTP LAN CABLE,CAT6 wire pairs communication media |
||

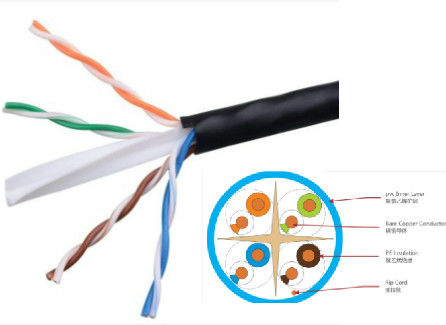

CAT6 CCA Copper UTP LAN CABLE Fluke Test 1000ft Communication Networking Wire
UTP CAT6 Features
1. High performance data communication cable
2. Suitable for 350MHz high speed data application
3. Designed for indoor installation.
4. Flame retardant flame retardant sheath
5. 4 pairs of color stripes for easy identification
6. Excellent attenuation and crosstalk characteristics
7. Low attenuation, low crosstalk
8. UV resistant PVC jacket for longer product life.
Anaerobic copper
Fast and reliable connections that are durable and flexible
Crossbones
Anti-crossover, avoid cables intertwined with each other.
Twist Patch
Cable performance is related to the twist pitch. Good anduniform twist pitch make cable have best performance.
Performance
|
Tem Name |
UTP Cat6 Cable |
|
TYPE |
CAT6 UTP |
|
Conductor |
BC (Pure Copper) Or CCA(Copper Clad Aluminum) |
|
Number of Conductor |
4Pairs / 8 Cores |
|
Specification |
23AWG(4P*2*0.57MM) , As your request |
|
Insulation Material |
HDPE |
|
PE Cross |
Plastic Material |
|
Jacket |
PVC/LSZH (Indoor) PE (Outdoor) |
|
Operating Temperature |
-20 °C - +75 °C |
|
Packaging |
305M/Roll with color box , 2 boxes into 1 carton (Indoor)305M/Roll with wooden drum , 2 drums into 1 carton (Outdoor) |
| Electrical Characteristics | ||||||
| Frequency (MHz) |
ATT (≤dB/100m) |
NEXT (≥dB) |
ELFEXT (≥dB) |
PS NEXT (≥dB) |
PS ELNEXT (≥dB) |
Loss return (dB) |
| 1 | 2.4 | 65.3 | 63.8 | 62.3 | 60.8 | 27 |
| 4 | 4.9 | 56.3 | 51.7 | 53.3 | 48.7 | 26.5 |
| 8 | 6.9 | 51.8 | 45.7 | 48.8 | 42.7 | 25.5 |
| 10 | 7.8 | 50.3 | 43.8 | 47.3 | 40.8 | 25 |
| 16 | 9.9 | 47.3 | 39.9 | 44.3 | 36.7 | 25 |
| 20 | 11.1 | 45.8 | 37.7 | 42.8 | 34.7 | 25 |
| 25 | 12.5 | 44.3 | 35.8 | 41.3 | 32.8 | 24.2 |
| 31.25 | 14.1 | 42.9 | 33.9 | 39.9 | 30.9 | 23.3 |
| 62.5 | 20.4 | 38.34 | 27.8 | 35.4 | 24.8 | 20.7 |
| 100 | 26.4 | 35.3 | 23.8 | 32.3 | 20.8 | 19 |
| Characteristic Impedance | 100±15Ω | D-C Resistance Unbalance | ≤2% | |||
| Delay Skew | ≤40ns/100m | D-C Resistance | ≤14.0Ω/100m | |||
| Phase Delay | ≤538ns/100m | Operating Temperature | -10° C~+60° C | |||
| Minimum insulation resistance at 15 ° C at 500 V DC | 5000MΩ/KM | Dielectric strength between conductors | ≥2500V DC/2s | |||
| Maximum working capacitance 1kHz | ≤5.6nF/100m | Propagation speed | 66% | |||
Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.
1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate
4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
