RG6 CCS 75 Ohm CCTV Coaxial Cable Atenna For Radio Vision System

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: ISO, TLC,SGS
Model Number: RG6 Coaxial cable(CCS)
Minimum Order Quantity: 10,000 Meters
Price: Can be negotiable
Packaging Details: Fumigated Wooden Tray
Delivery Time: 5-8Days
Payment Terms: T/T, L/C,
Supply Ability: 20000000m per month
Product Name: RG6 Coaxial Cable(CCS) Application: Local Communication Cable, Coaxial Cable, CCTV CATV Satellite
Conductor: CCS Insulation Material: Foam PE
Shield: Foil+Aluminum Magnesium Alloy Wire Jacket: PVC
Color: Gray Transport Package: Box
High Light:

CCS CCTV Coaxial Cable

,

CCTV Coaxial Cable Radio Vision System

,

CATV rg6 75 ohm coaxial cable

RG6 Copper 75ohm CCTV Coaxial Cable(CCS conductor)



Desciption


High-physics foamed coaxial cable is a semi-air insulated cable. The inner conductor is made of copper-clad steel wire .The mutually closed air holes, the adhesion between the insulation and the inner conductor is firm; the outer conductor is braided with aluminum foil longitudinally wrapped with aluminum-magnesium alloy wire or tinned copper wire; with a PVC outer jacket.

Application:


1) CATV-community antenna television
2) CCTV-closed-circuit television
3) DBS-direct broadcasting satellite
4) Multiplex telephony
5) Closed-circuit television surveillance system & radio vision system
6) Electronic warfare, aviation and other electronic devices



Peiformance



Electrical Characteristics Nom.Impedance 75±3Ω
DC-resistance(20ºC) ≤9,578μΩ.cm
conductor resistance 98 Ω/km
propagation speed >82%
capacitance ≤53 pF / m
Return loss 5MHz - 300 MHz: ≥24 dB
300 MHz - 1200 MHz: ≥20 dB
performance Shielding effect 5MHZ≥95dB
300MHZ≥95dB
550MHZ≥100dB
1000MHZ≥1055dB
Attenuation 5MHZ<1.9dB/100m
55MHZ<5.25dB/100m
211MHZ<10dB/100m
250MHZ<10.28dB/100m
270MHZ<11.04dB/100m
300MHZ<11.64dB/100m
330MHZ<12.26dB/100m
350MHZ<12.63dB/100m
400MHZ<13.61dB/100m
450MHZ<14.43dB/100m
500MHZ<15.29dB/100m
550MHZ<16.08dB/100m
600MHZ<16.73dB/100m
750MHZ<18.54dB/100m
870MHZ<20.04dB/100m
1000MHZ<21.49dB/100m
1200MHZ<23.50dB/100m
1450MHZ<25.79dB/100m
1750MHZ<28.61dB/100m
2000MHZ<30.58dB/100m
3000MHZ<37.73dB/100m

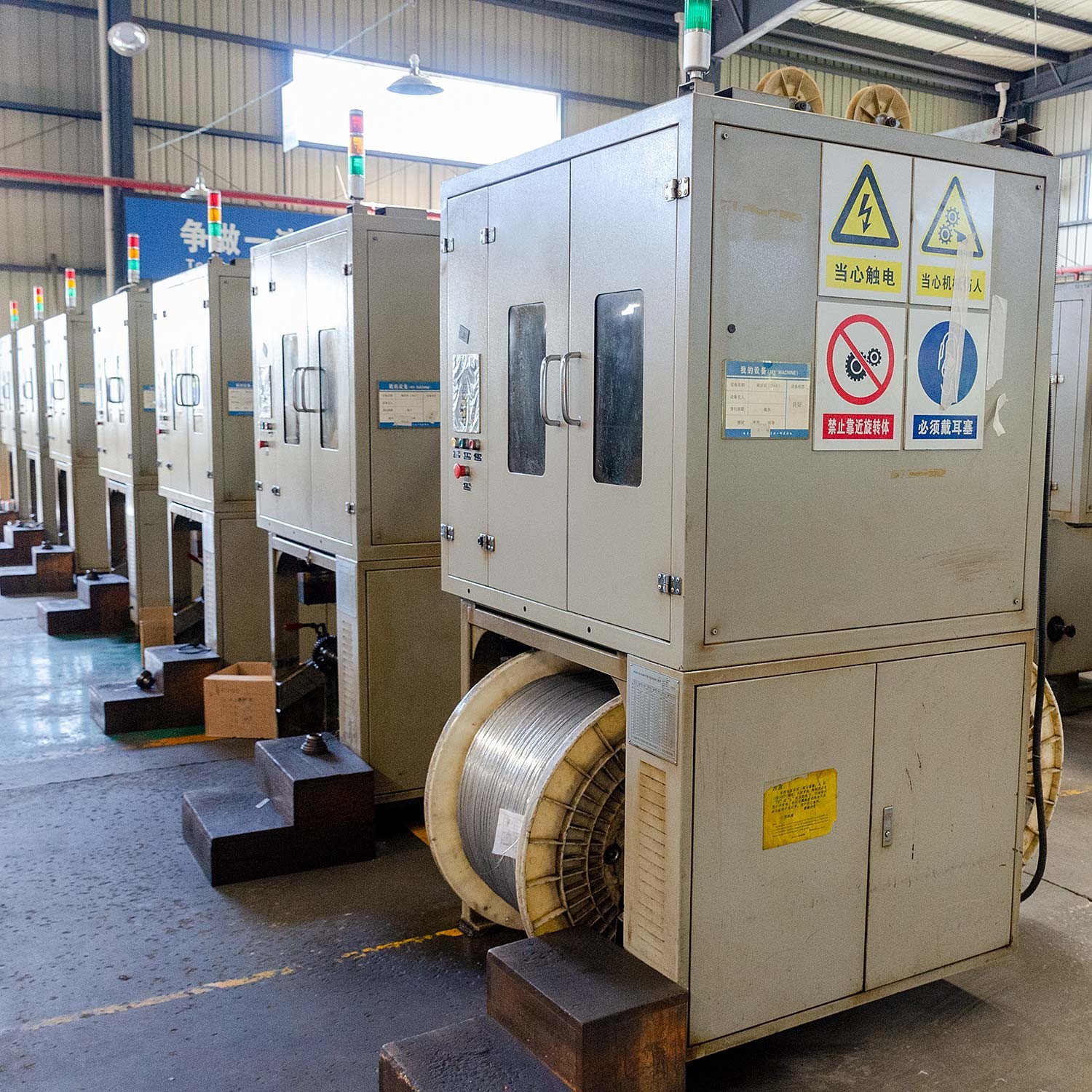

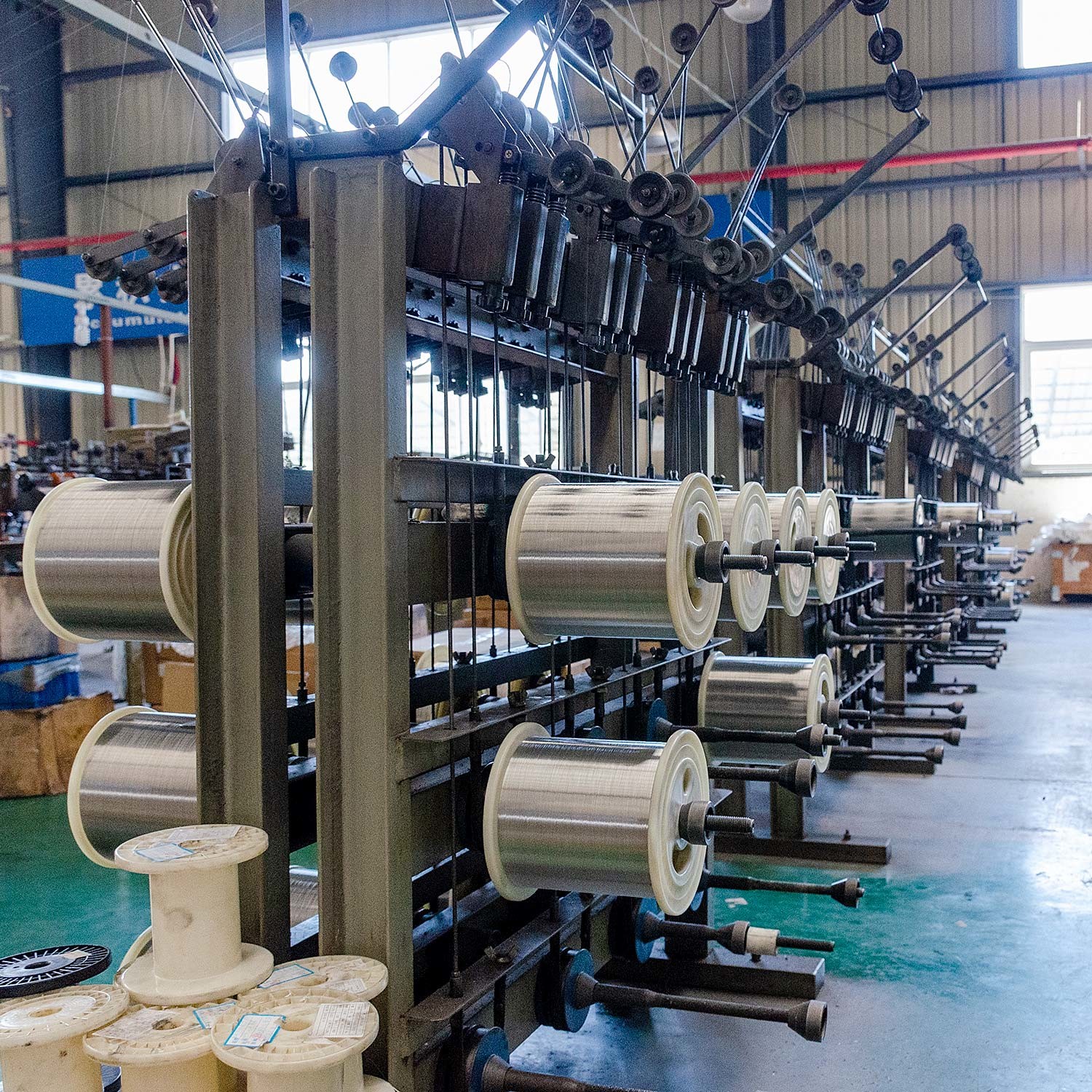

Conpany file

RG6 CCS 75 Ohm CCTV Coaxial Cable Atenna For Radio Vision System 0

RG6 CCS 75 Ohm CCTV Coaxial Cable Atenna For Radio Vision System 1RG6 CCS 75 Ohm CCTV Coaxial Cable Atenna For Radio Vision System 2

RG6 CCS 75 Ohm CCTV Coaxial Cable Atenna For Radio Vision System 3
RG6 CCS 75 Ohm CCTV Coaxial Cable Atenna For Radio Vision System 4
