Power GYXTW 1310nm Hybrid Fiber Optic Cable Bundled RVV Hdpe Sheathed

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: ISO9001/Tlc
Model Number: GYXTW+RVV
Minimum Order Quantity: 20,000 Meters
Price: Can be negotiable
Packaging Details: Fumigated Wooden Tray
Delivery Time: 5-8Days
Supply Ability: 50000000m Per month
Application: Local Communication Cable, Network System Connection Structure: Composite Cable
Material Shape: Round Wire Conductor: Copper And SM Fiber
Sheath Material: HDPE Length: 3KM/Drum
High Light:

GYXTW Hybrid Fiber Optic Cable 1310nm

,

1310nm Hybrid Fiber Optic Cable

,

RVV hdpe sheathed cable 1310nm

Optic+Power GYXTW Fiber Optic Cable Bundled RVV Hybrid Cable Composite Cable



Description



Type: Center tube type with two steel wires
The way: Aerial and duct
Waterblocking: Jelly

The unique fiber excess length control method provides the cable with excellent tension and environmental properties
The loose tube material itself have good water-resistant properties of solution and higher intensity, Special jelly filled in the loose tube provides the fibers with critical protection.



Features:


Excellent crush resistance performance and flexible performance
The out PE sheath provides good anti-UV radiation performance
Adopt the following measures to ensure the waterproof properties of optical fiber cable
The unique waterproof compounds filled in the loose tube


PERFORMANCE

Optic cable Power wire
1310nm max. attenuation:0.35dB/km Specification Size Implementation "Specification for Single Core Soft Type Cable"
1550nm max. attenuation:0.25dB/km
Min.thickness of Sheath:1.8mm
Water seepage meets requirements
Nom.thickness 2.0mm,Min thickness1.8mm
Specification Size Implementation "Specification for Single Core Soft Type Cable":
Conductor nominal cross-sectional area(mm²) Insulation thickness specification value(mm) Average external diameter(mm) Minimum insulation resistance at 70 °C(MΩ.km)
lower limit upper limit
0.5 0.6 1.7 2.2 0.013
0.75 0.6 2.0 2.5 0.012
1.0 0.6 2.3 2.8 0.011
1.5 0.7 2.8 3.4 0.010
2.5 0.8 3.4 4.1 0.009
4 0.8 3.9 4.8 0.007
6 0.8 4.4 5.3 0.006



COMPANY PROFILE



SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .

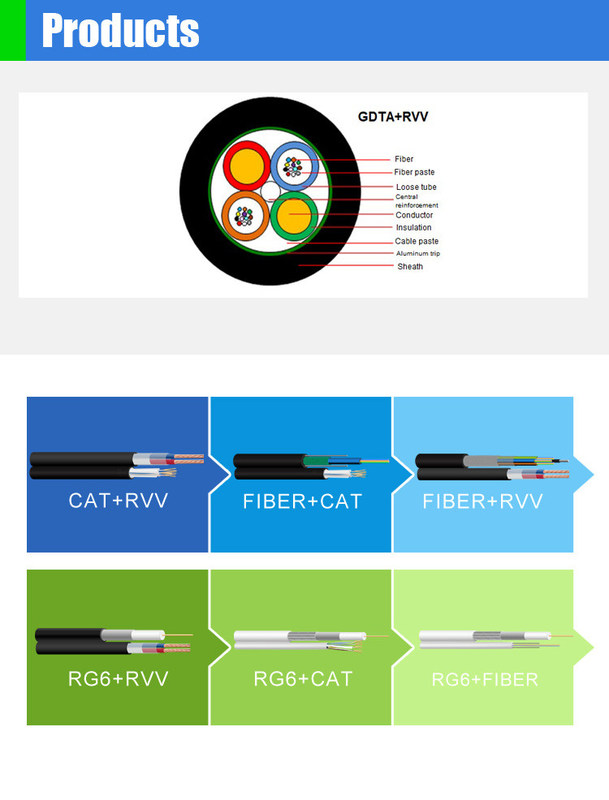

Power GYXTW 1310nm Hybrid Fiber Optic Cable Bundled RVV Hdpe Sheathed 0
