CCA Hybrid Copper Fiber Cable Pvc Sheath RG6 CAT5E AWG24 Copper

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: ISO9001/Tlc
Model Number: RG6+CAT5E
Minimum Order Quantity: 20,000 Meters
Price: Can be negotiable
Packaging Details: Fumigated Wooden Tray
Delivery Time: 5-8Days
Supply Ability: 50000000m Per month
Application: Local Communication Cable, LAN Cable, Home Network System Connection Structure: Composite Cable
Material Shape: Round Wire Conductor: Copper CCA And CCS
Sheath Material: PVC LSZH Length: 305m/carton
Single Conductor DC Resistance≤(Ω/100m): 9.5 Product Name: Composite Cable
High Light:

CCA Copper hybrid copper fiber cable

,

52pfm hybrid copper fiber cable

,

lan pvc sheath cable

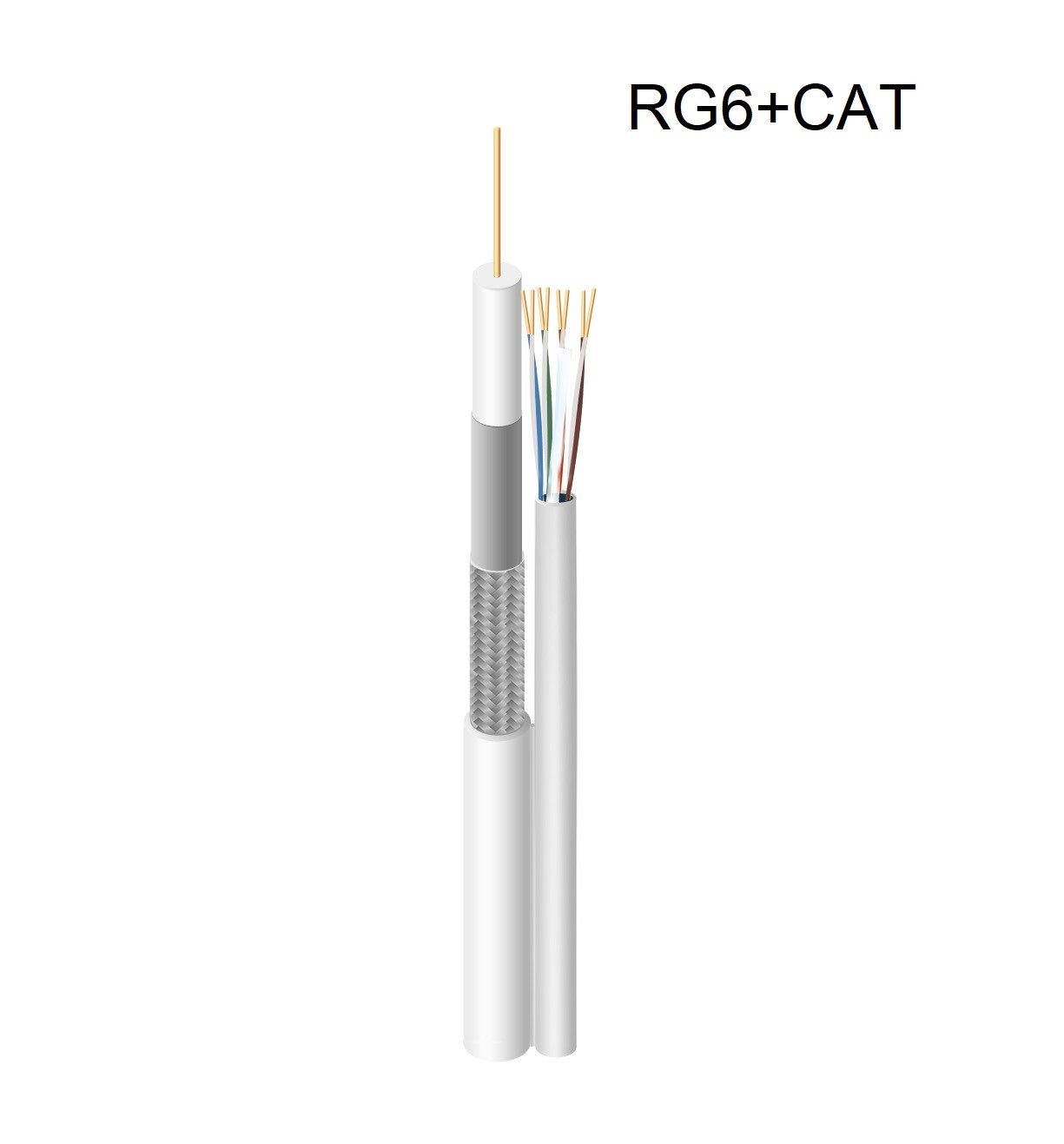

Coaxial+Data Composite Cable Hybrid Cable RG6+CAT5E AWG24 Copper



DESCRIPTION
The product is compact, reasonably designed, and has the characteristics of cable transmission of cable television signals and broadband data signals. It is designed and manufactured according to the GY/T135-1998. YD/T1019-2013 standard and is suitable for the transmission of video signals of 1 GHz and below. Transmission of broadband data, audio, and video signals for 100MHz. The transmission rate is 100 Mbps, the decay is reduced, the crosstalk is less, and there are higher attenuating ratio(ACR) and noise ratio(StruckturalRetur Loss), smaller delay error, and an effective transmission distance of 100 M.

FEATURES
Composed by Coaxial cable and Data cable,used for cable TV signal and broadband data transmission both;
Decrease installation cost with easy tearing and wiring;

APPLICATIONS
Transmission of RF signal being equal to or less than 1000MHz and DATA/AUDIO/VIDEO signals with the broadband being 100MHz.

PERFORMANCE

CAT 5e performance
Rated capacitance (PF/m) Conductor DC resistance imbalance (Max.) Single conductor DC resistance≤(Ω/100m) Distal serial phonology(1-100MHz(dB/km)
52 2.5% 9.5 64
Electrical performance of coaxial cable and combination cable mechanism
Characteristic fixed resistor 52 Rated speed ratio Digital combined communication cable
Rated speed ratio 80% Institutional composition RG-6 CAT 5E
Rated capacitance (PF/m) ... Internal conductor structure external diameter(mm) ...
Max. attenuation(dB/100m) 50MHz 4.6 Insulation diameter(mm) 4.85 0.92
200MHz 9.0 Outer conductor(mm) 50 % braided shield ...
250MHz 15.7 Symmetric diameter(mm) ... 1.8
800MHz 19.0 Outer diameter(mm) 7.1 5.3
100MHz 22.0 Shape Size(mm) 12.4*7.1*5.3
Min.return loss(dB) VHF 22
UHF 20
Shield attenuation 50MHz 85
200MHz 85
800MHz 90



COMPANY PROFILE



SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

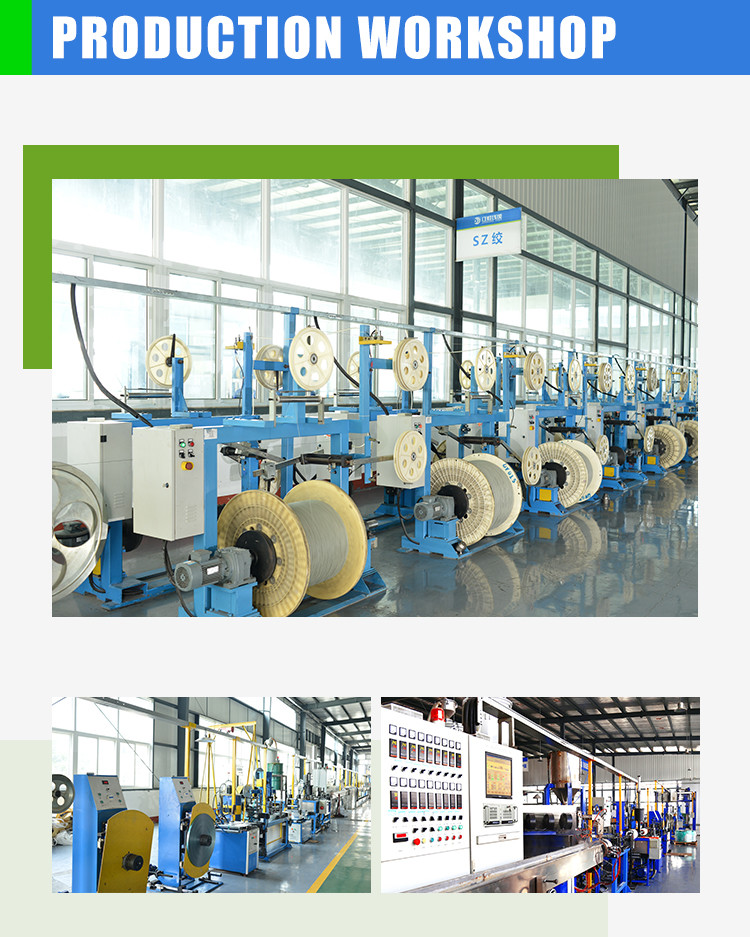

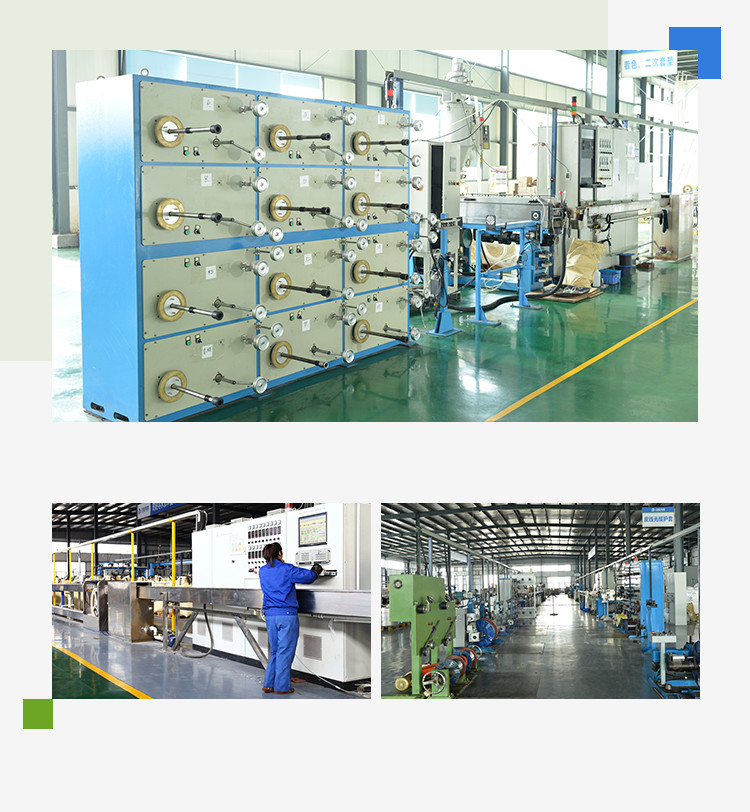

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .

CCA Hybrid Copper Fiber Cable Pvc Sheath RG6 CAT5E AWG24 Copper 0

CCA Hybrid Copper Fiber Cable Pvc Sheath RG6 CAT5E AWG24 Copper 1
CCA Hybrid Copper Fiber Cable Pvc Sheath RG6 CAT5E AWG24 Copper 2
CCA Hybrid Copper Fiber Cable Pvc Sheath RG6 CAT5E AWG24 Copper 3
CCA Hybrid Copper Fiber Cable Pvc Sheath RG6 CAT5E AWG24 Copper 4
