SM 24 Cores Aluminum 24Cores Fiber Optic Overhead Cable Armored Fig8 GYTC8A

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: Ce/ISO9001/Tlc
Model Number: GYTC8A-24
Minimum Order Quantity: 20,000 Meters
Price: Can be negotiable
Packaging Details: Fumigated Wooden Tray
Delivery Time: 5-8Days
Supply Ability: 50000000m Per month
Application: Communication Telecommunication Type: SM Optical Fiber
Connection Structure: Fig8 SelfSupporting Core: 24cores
Fiber Model: G652D Or G657A Loose Tube Material: PBT Tube
Sheath Material: HDPE MDPE LSZH Transport Package: Wooden Reel
High Light:

24Cores fiber optic overhead cable

,

fiber optic overhead cable Armored fig8

,

Self Supporting cable GYTC8A

SM24 Cores Aluminum Armored Figure-8 Self Supporting Fiber Optic Cable GYTC8A



DESCRIPTION



The fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.


FEATURES


1. High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
2. Good mechanical and temperature performance
3. High strength loose tube that is hydrolysis resistant
4. Special tube filling compound ensure a critical protection of fiber
5. The following measures are taken to ensure the cable watertight:
6. Loose tube filling compound
7. 100% cable core filling
8. APL moisture barrier


APPLICATIONS


Aerial

PERFORMANCE

Type Max.Attenuation Tensile test  Crush test  Min.Bending radius
1310nm 1550nm Short term Long term Short term Long term
GYTC8A-24 0.36dB/km 0.22dB/km 6000N 3000N 3000N 1000N 20D



Company profile



SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .

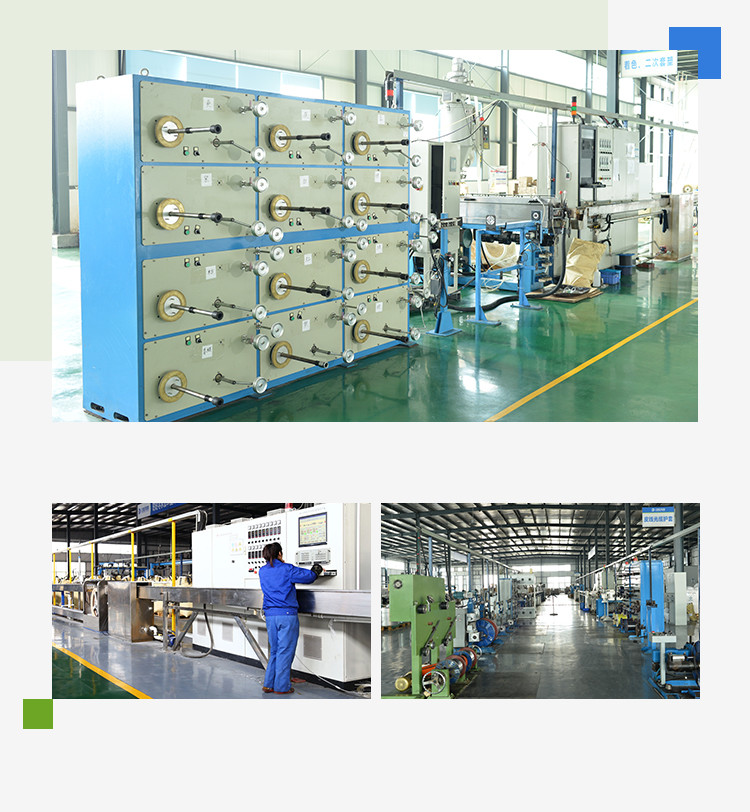

2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .

SM 24 Cores Aluminum 24Cores Fiber Optic Overhead Cable  Armored Fig8 GYTC8A 0

SM 24 Cores Aluminum 24Cores Fiber Optic Overhead Cable  Armored Fig8 GYTC8A 1
SM 24 Cores Aluminum 24Cores Fiber Optic Overhead Cable  Armored Fig8 GYTC8A 2
SM 24 Cores Aluminum 24Cores Fiber Optic Overhead Cable  Armored Fig8 GYTC8A 3
SM 24 Cores Aluminum 24Cores Fiber Optic Overhead Cable  Armored Fig8 GYTC8A 4
