| Place of Origin: | Sichuan, China |
|---|---|
| Brand Name: | JIANGHONG or OEM |
| Certification: | ISO,TLC |
| Model Number: | GJYXCH-2 |
| Minimum Order Quantity: | 20,000 Meters |
| Price: | Can Be Negotiated |
| Packaging Details: | Carton+Fumigated Wooden Tray |
| Delivery Time: | 5-8Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 50000KM per month |
| Product Name: | FTTH Drop Cable | Core: | 2-12cores |
|---|---|---|---|
| Application: | Communication And FTTH Wiring | Fiber Model: | G657a2 G657a1 |
| Strength Member: | Fiber Reinforced Plastics(FRP) | Sheath Material: | LSZH |
| Allowed Lateral Pressure: | >1000(N/100mm) | Allowed Tensile Strength: | 1000N<10000N |
| Length: | 2KM Per Reel | Packing: | Reel+Carton+Pallet |
| High Light: | G657A2 Outdoor FTTH Drop Cable,Outdoor FTTH Drop Cable GJYXFCH,FTTH 2 core outdoor cable |
||
GJYXFCH 2Cores Outdoor FTTH Drop Cable Single Mode FRP Strength Member G657A2
Description

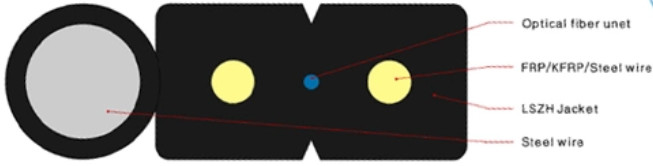

GJYXFCH-2 FTTH drop cable ,the optical fiber unit is positioned in the centre.,Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a LSZH sheath, UV & Flame retardant.
Features
1. Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property;
2. Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber;
3. Simple structure, light weight and high practicability;
4. Novel flute design, easily strip and splice, simplify the installation and maintenance;
5. Low smoke, zero halogen and flame retardant sheath.
Applications
Used as access building cable in premises distribution system,especially used in indooror outdooraerial access cabling.
Performance
|
Type |
Max.Attenuation |
Tensile strength |
Crush resistance |
Min.Bending radius(Dynamic) |
|||
|
1310nm |
1550nm |
Short term |
Long term |
Short term |
Long term |
||
|
GJYXCH-2 |
0.36dB/km |
0.25dB/km |
80N |
40N |
1000N |
500N |
40.0×Cable-φ |
|
NO. |
Items |
Unit |
Specification | |
|
G657A2 |
||||
|
1 |
Mode Field Diameter |
1310nm |
µm |
(8.6-9.5)±0.4 |
|
2 |
Cladding Diameter |
µm |
125.0±0.7 | |
|
3 |
Cladding Non-Circularity |
% |
≤1.0 | |
|
4 |
Core-Cladding Concentricity Error |
µm |
≤0.5 | |
|
5 |
Coating Diameter |
µm |
245±10 | |
|
6 |
Coating Non-Circularity |
% |
≤1.0 | |
|
7 |
Cladding-coating Concentricity Error |
µm |
<12.5 |
|
|
8 |
Cable Cutoff Wavelength |
nm |
λ cc ≤1260 | |
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
0.4 |
|
1550nm |
dB/km |
0.3 |
||
|
10 |
Macro-Bending Loss |
1 turn×7.5mm radius @1550nm |
dB |
≤0.5 |
|
1 turn×7.5mm radius @1625nm |
dB |
≤1.0 | ||
Company profile
SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.
BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year,factory already got ISO9001:2015 quality management certificate.ISO14001:2015 environmental management certificate and OHSAS18001:2007 occasional healthy and safety management system certificate.
1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate
4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
