24 48 72 Cores ADSS Fiber Optic Cable All Dielectric Self Supporting Fiber Optic Cable

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: ISO9001/Tlc
Model Number: ADSS
Minimum Order Quantity: 20,000 Meters
Price: Can be negotiable
Packaging Details: Fumigated Wooden Tray
Delivery Time: 5-8Days
Supply Ability: 50000000m Per month
Application: Communication Cable Type: Single Mold Fiber
Material Shape: Round Wire Cores: 12-144cores
Fiber Model: G652D Sheath Material: HDPE
Length: 3km/Drum Or Customized Packing: Fumigated Wooden Tray
High Light:

24 cores ADSS Fiber Optic Cable

,

72 Cores ADSS Fiber Optic Cable

,

all dielectric self supporting G652D

All Dielectric Self Supporting ADSS Fiber Optic Cable G652D 24 48 72 96 Cores



DESCRIPTION

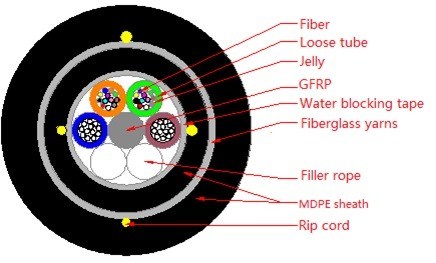

The optical fiber loose tube is wound on the central reinforcement (usually FRP) at a certain pitch, and then the inner sheath is extruded (which can be omitted in small tension and small span), and then wrapped according to the required tensile strength Appropriate spinning yarn, then extruded PE or AT sheath.


FEATURES


1. Designed for power system, fully insulated medium, self-supporting overhead optical cable can be directly hung on the power pole tower;
2. Fully-insulated structure and high withstand voltage index, which is convenient for the installation of overhead power lines for live operation;
3. The FRP with high tensile strength can withstand strong tension and achieve a large span, while preventing bird pecking and artificial shooting;
4. The thermal expansion coefficient of the ADSS optical cable is small. When the temperature changes greatly, the arc of the optical cable line changes very little, and its weight is light, and its ice crawling and wind load are also small.


APPLICATIONS


Aerial


PERFORMANCE



Fiber Characteristic
Attenuation 1310nm:0.35dB/km
1550nm:0.21dB/km
Cutoff wavelength When the cut-off wavelength of the optical fiber cable was tested on a 22 m long cable sample, it was less than 1260 nm.
Bending characteristics The attenuation characteristic test of 1550 nm was carried out after loosening 100 turns from the bending radius of 37.5 mm, and the attenuation increase value did not exceed 0.05 dB.
Mode field diameter 1550nm : 10.4±0.5μm
1310nm:9.1±0.4μm
Cladding diameter 125±0.7μm
Cladding non-circularity <1%
Mode length non-circularity <6%
Coating diameter 245±10 μm
Macro-bending radius 100trun X 30mm @1625 nm 0.05dB
Mode field/cladding concentricity deviation ≤10μm
Mechanical and Enviromental test
Item Test method Acceptance Condition

Tensile strength

( IEC60794-1-2-E1)

Load : 2700N Loss change 0.05dB@1550nm No fiber break nor sheath damage
Length of cable: about 50m
Load time : 1 Min
Crush test Load : Short term crush(1100 N/cm) Loss change 0.05dB@1550nm No fiber break nor sheath damage
Load time : 1 Min
Impact test Points of impact : 10 Loss change 0.05dB@1550nm No fiber break nor sheath damage
Times per point : 1
Impact energy : 10J
Repeated bending Bending dynamic radius : 20 D Loss change 0.05dB@1550nm No fiber break nor sheath damage
NO. of cycle : 20

Torsion Length:1m Loss change 0.05dB@1550nm No fiber break nor sheath damage
-Twist angle;±90°
-No. of cycle:10
Water penetration Height of water : 1m No water leakage
Sample length:3m
Time :24 h
Temperature cycling Temperature :-40~+70ºC Loss change 0.05dB@1550nm No fiber break nor sheath damage
Time of each step:24h
No. of cycle :1
Drip test 0~70 degree No filling compound dripping
High pressure test AC10KV , 50Hz Loss change 0.05dB@1550nm No fiber break nor sheath damage



COMPANY PROFILE



SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

BY 26 years development,company has become a modernized enterprise focus on development,manufacture of different cables for radio and TV network,Video monitoring network,FTTH communication and smart home network.Based on advanced production equipment,the annual capacity has reached up to 5 minllion km/year.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
