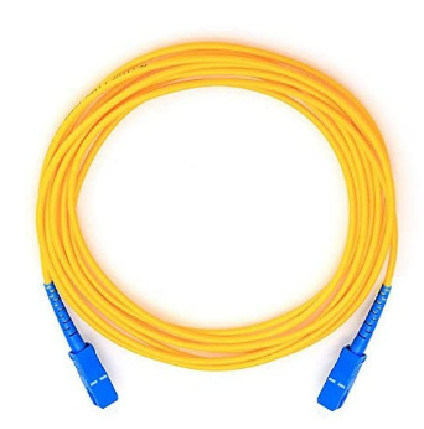

Customized Single Mode SC To SC Fiber Patch Cable Double Core G657A

Basic Information
Place of Origin: Sichuan, China
Brand Name: JIANGHONG or OEM
Certification: ISO,TLC
Model Number: SC/UPC
Minimum Order Quantity: 2000 PCS
Price: Can Be Negotiated
Packaging Details: Carton+Fumigated Wooden Tray
Delivery Time: 5-8Days
Payment Terms: L/C, T/T
Supply Ability: 50000KM per month
Product Name: SC UPC FTTH Fiber Optic Patch Cord Specification: 2.0mm/3.0mm LC/SC Fiber Optical Patch Cord
Core: Double Core Type: Round Wire
Fiber Model: G657A Sheath Material: LSZH PVC
Allowed Lateral Pressure: 100(N/100mm)<1000(N/100mm) Allowed Tensile Strength: 1000N<10000N
Length: Customized Service Connector Type: Sc, Optical
High Light:

single mode fiber patch cable G657A


FTTH Patch Cord Double Core


Sc To Sc Fiber Patch Cable G657A

FTTH Fiber Optical Equipment 3 Meters SC-SC Simplex 9/125 SingleMode SM Fiber Optic Cable SC Patch Cord Jumper Cable


10/20/30/60/100/150/200m Outdoor FTTH Fiber Optic Drop Cable with SC Connector FTTH patch cord


Signal transmission and data transmission Telecommunications network, local area network (LAN), metropolitan area networks, optical fiber communication systems
Fiber optic test equipment / instrumentation Optical fiber CATV (cable television), optical fiber sensors
Fiber-optic broadband-home, FTTH fiber to the home


Indoor use only


Connector SC to SC
Cable type Simplex
Core cladding diameter Single mode 9/125
Cable outer diameter (mm) 3mm
Number of plug <1000 times
Working temperature -40~+80°C
Storage temperature range -40~+85°C
Length 9.8ft /3meters


The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) or steel wires are placed at the two sides. A steel wire as the additional strength member is also applied. Then the cable is completed with a black LSZH sheath.


  1. Low smoke, halogen free, flame retardant sheath.
  2. Good compression resistance is ensured by two parallel FRP strength members to protect the fibres.
  3. Novel groove design, easy to peel off and splice, simplifying installation and maintenance.
  4. Aluminum layer armor, effective anti-rat, waterproof.
  5. Optional fiber optic cables to choose from: OS2, OM2, OM1, OM3, OM4.


Item vaule
Ferrule end-face PC UPC APC
Connector type FC,SC,LC,ST,MTRJ,MU,E2000,MPO,DIN,D4 and SMA
Cable type SX/LSZH
Mode SM:9/125
Cable diameter 2.0mm,3.0mm
Insertion loss ≤0.2 and 0.3dB
Return loss ≥50 and 65dB
Exchangeability ≤0.2dB
Vibration ≤0.2dB
Operating temperature -40 to 75
Storage temperature -45 to 85
Tensile force 50N/static state 30N/used state

Company profile


SICHUAN JIANGHONG CABLE MANUFACTURE CO.,LTD,was founded in 1992,located in Jiangyou,Sichuan P.R.China.

1. Experience:with more than 20 years production experience on cable industry . certified supplier for broadcasting and communication company in China domestic and overseas market .
2. Production line:supply different cables for radio and TV network , Video monitoring network , FTTH communication ad smart home network .
3. Certificate:Factory got ISO9001:2015 quality management certificate. ISO14001:2015 environmental management certificate and OHSAS18001:2007 occupational health and safety management system certificate

4. High-quality material:With strict supplier control and raw-material inspection .make sure the product quality stable and reasonable cost .offer high-quality fiber from well-know fiber company . offer self-inspection and 3rd-party test report.
5. Service:One stop service at customer’s convenience,offer solution based on customer's request .
6. Price:Reasonable cost based on quality guaranteed product .
